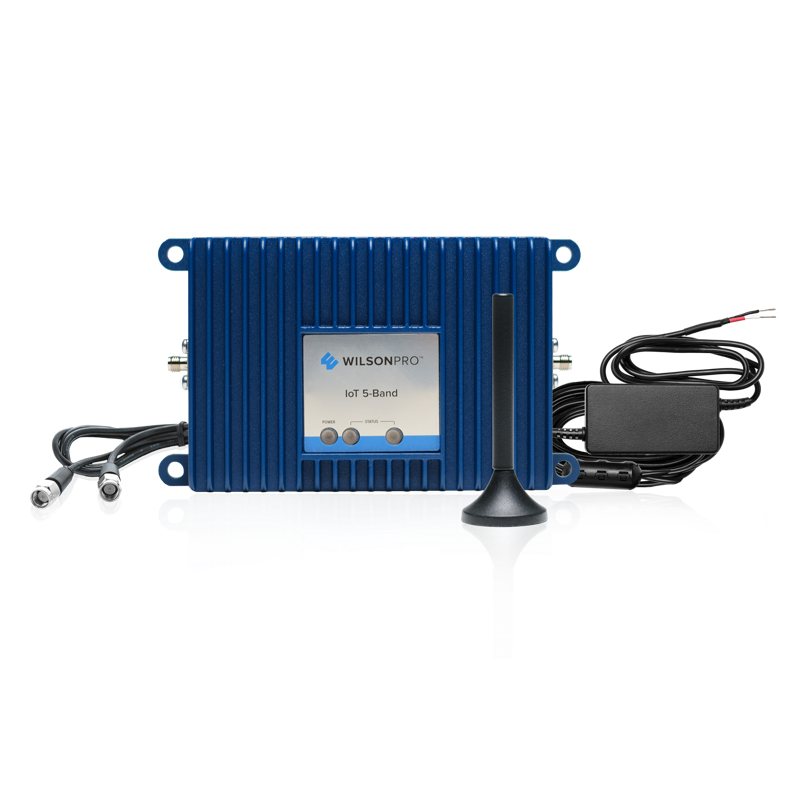

Iot 5-BAND W/Mini Mag External Antenna

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Designed to link with a data modem as a direct-connect amplifier
• Improves overall cellular connectivity in weak signal environments
• Configurable to almost any Internet of Things (IoT) installation
• Pre-approved by all major cell carriers under FCC "part 20" rules
• Bi-directional amplification boosts signals to and from cell towers
• Passive RF bypass failover keeps modem going if power is lost
• Auto-power control to help ensure maximum signal output

Medidas y especificaciones (en inglés)

• Max Gain: 15 dB
• Max Uplink Power: 24 dBm
• Max Downlink Power: -3dBm
• Impedance: 50 Ohm
• Power: 12 to 14 Vdc, 5Vdc @ 5A
• Connectors: SMA Female
• Dimensions: 1.25 x 3.5 x 6.25"
• Weight: 1.085 lbs
• Kit Includes:Wilson M2M 15 dB Direct-Connect Amplifier
• Wilson 4 in. Mini-Mag External Antenna (301126)
• Wilson AC (850012) or DC Hardwire (859923) Power Supply
• Wilson 3' RG174 coax cable with SMA adapters
• Instruction manual with Installation directions

Descripción del fabricante (en inglés)

The WilsonPro IoT 5-Band is a "Direct-Connect" solution for cellular network capable equipment and IoT devices. Compatible with all U.S. carrier networks, the IoT 5-Band connects directly with cellular modems and provides strong, reliable cell signal to guarantee successful IoT data transfer. This a 12V hardware kit with DC power supplied by a vehicle to amplify cell signal for an LTE-modem hotspot.
