8IN High-Power Pendant Speaker with Cd (Pair)

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Coaxial design featuring: 209 mm (8 in) Kevlar™ reinforced woofer with 50 mm (2 in) voice coil, 25 mm (1.0 in) titanium-dome compression driver
• High power capability of 250 Watts (1000W peak) and high SPL of 114 dB (120 dB peak)
• Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp
• Black finish
• UL listed speaker and hanging cable system
• 8 ohm and 70V/100V operation
• Extremely consistent constant-directivity 110° conical coverage

Medidas y especificaciones (en inglés)

• Frequency Range (-10 DB): 52 Hz - 17 kHz
• Frequency Response (±3 DB): 72 HZ - 16 KHZ
• Power Capacity: 150 Watts Continuous Pink Noise Power (600 Watts peak, 100 hrs); 250 Watts Continuous Pink Noise Power (1000 Watts peak, 2 hrs); 500 Watts Continuous Program Power (2 hr)
• Nominal Sensitivity: 90 dB Nominal
• Coverage Angle: 110° conical
• Directivity (Q): 7.8
• Directivity Index (DI): 8.9 dB
• Maximum Input Voltage: 41.4 V RMS (2 hrs), 82.8 V peak
• Rated Maximum SPL @ 1m: 114 dB continuous pink noise, 120 dB peak
• Rated Impedance: 8 ohms Transformer Taps: 70V: 68W, 34W, 17W, & 8.5W 100V: 68W, 34W, 17W
• Transformer Insertion Loss: 0.5 dB @ 8.5W, 0.5 dB @ 17W, 0.6 dB @ 34W, 0.7 dB @ 68W
• Recommended Protective High-Pass4 60 Hz high-pass (24 dB/oct) for 8 ohm operation and for all 70V/100V tap settings
• LF Driver: 209 mm (8 in) Kevlar(tm) reinforced cone, 50 mm (2 in) CCAW voice coil on fiberglass voice coil former
• HF Driver: 25 mm (1.0 in) compression driver, titanium dome, ferrite magnet assembly, Kapton voice coil former

Descripción del fabricante (en inglés)

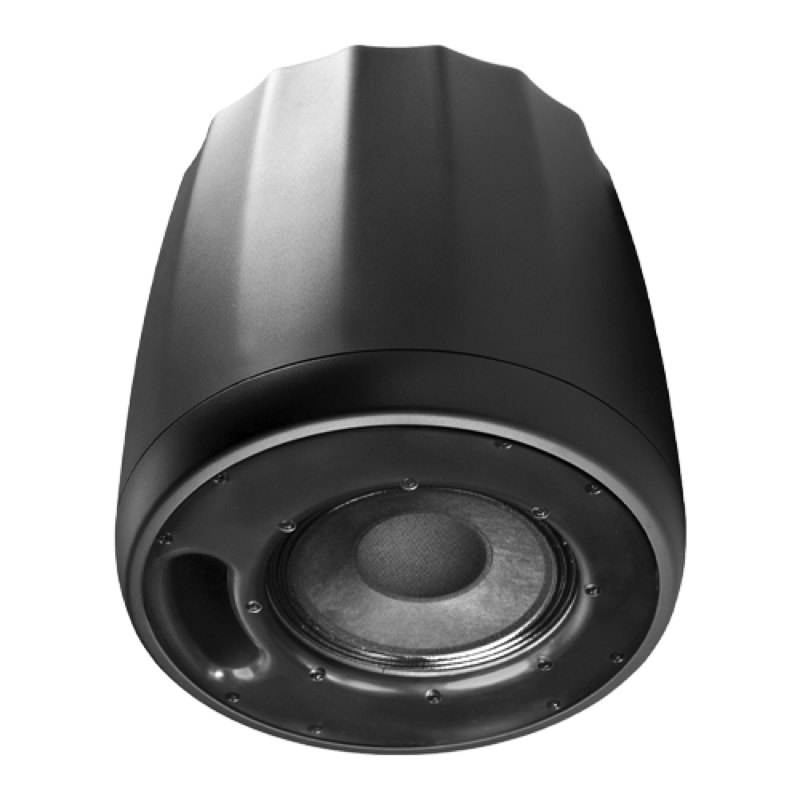

The JBL Control 68HP full-range two-way pendant loudspeaker provides high output, high power handling, superior clarity and consistent coverage in rooms with open-architecture ceilings, live spaces and other locations where a pendant loudspeaker is desired. Common applications include retail, hospitality spaces, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums and transit centers. Control 68HP features a 209mm (8-inch) low-frequency driver with a Kevlar-reinforced cone and a 50mm (2-inch) voice coil with fiberglass voice coil former for superior power performance and long-term reliability. A coaxially-mounted 25mm (1-inch) compression driver features a titanium dome with damped resonance and a Kapton voice coil former for enhanced long-term fidelity and output capability. A 68-watt multi-tap transformer is included for use on 70V/100V distributed loudspeaker lines and is switchable for 8-ohm direct operation. Its 110° constant-directivity dispersion pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance. Installation is fast and easy with Control 68HP’s secure mounting system. Two complete hanging cable systems are included, providing both main and safety suspension cables. Suspension height is infinitely adjustable using the included 4.5-meter high-tensile galvanized steel wire rope with spring clips and UL listed cable fasteners.
