8IN, in-Ground Subwoofer, Green, 1-PC

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Transducer: 209 mm (8”) polypropylene driver, 38mm (1.5”) voice coil on Kapton former
• True subwoofer performance down to 35 Hz
• Built-in steep, multiple-slope lowpass filter
• Low-impedance ohm direct operation, plus premium-grade subwoofer-band transformer for use in 70V/100V systems
• Forms a complete system with JBL GSF full-range landscape speakers

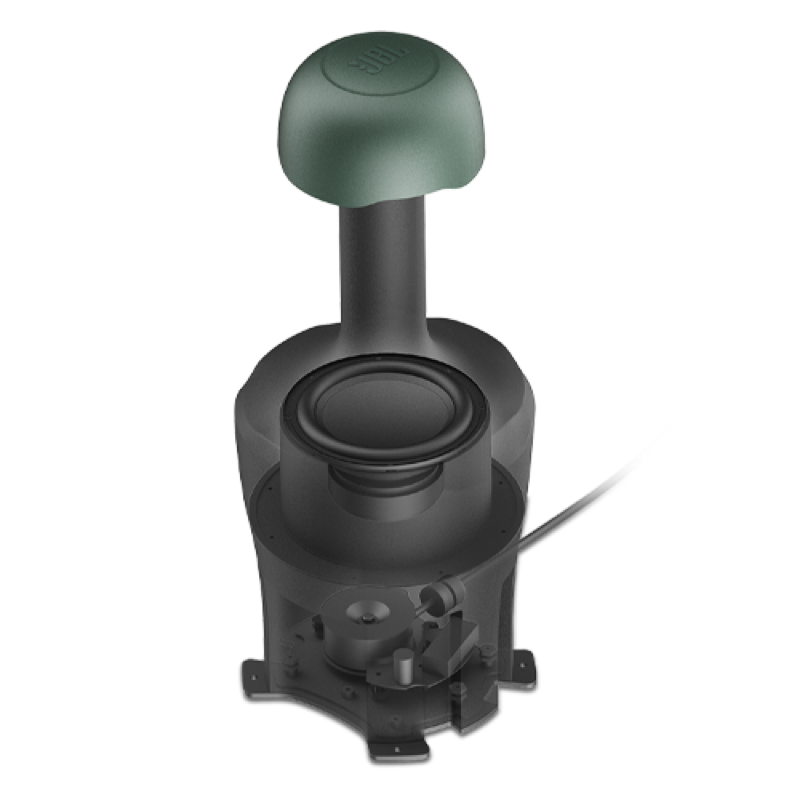

• Chamber oriented directly below opening to prevent accidental damage from landscaping
• Grab handles allow easy installation
• Anchor points for securing cabinet to block or anchors
• Hunter Green finish

Medidas y especificaciones (en inglés)

• Frequency Range (-10 dB): 35 Hz – 130 Hz Frequency Range (±3 dB): 43 Hz – 120 Hz
• Power Rating: 500 W Continuous Program (2 hrs) 250 W (1000 W Peak), Continuous Pink Noise (2 hrs) 150 W (600 W Peak), Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 35 V (based on 2 hr Continuous Pink Noise rating)
• Sensitivity: 84 dB (43 Hz - 110 Hz)
• Nominal Coverage Angle: 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground). Rated Maximum SPL: 114 dB peak (108 dB continuous, 2 hr) @ 1m Nominal Impedance: 6Ω (at 6Ω tap) Minimum Impedance: 5.2Ω at 51Hz
• Transformer Taps: 70V: 100 W, 50 W, 25 W 100V: 100 W, 50 W Insertion Loss: <0.5dB at any tap setting
• Thru Setting: 6Ω nominal
• Crossover Type: 2nd order
• Recommended Protective High-Pass: 35 Hz for 6Ω operation and for all tap settings, 24 dB/oct
• Driver: 209 mm (8-inch) driver, polypropylene injection cone, TPV thermoplastic vulcanizate surround, 38 mm (1.5- inch) voice coil on Kapton former
• Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout.
• Grille: Powder coated stainless steel
• Environmental: IP66 rating per IEC529 (dust protected and protected against strong jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature, & UV. Passes Mil-Std-202F for salt spray.
• Agency Ratings: Transformer UL Recognized per UL1876, ROHS compliant.

Descripción del fabricante (en inglés)

The JBL GSB8 in-ground 8-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces. The GSB8 focuses on fidelity, with true subwoofer extension down to 35 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 100-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation. This sleek, ultra-low-profile speaker—winner of international design awards for industrial design excellence—installs underground, with only the audio port visible. It’s designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors. Add the GSB8 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.
