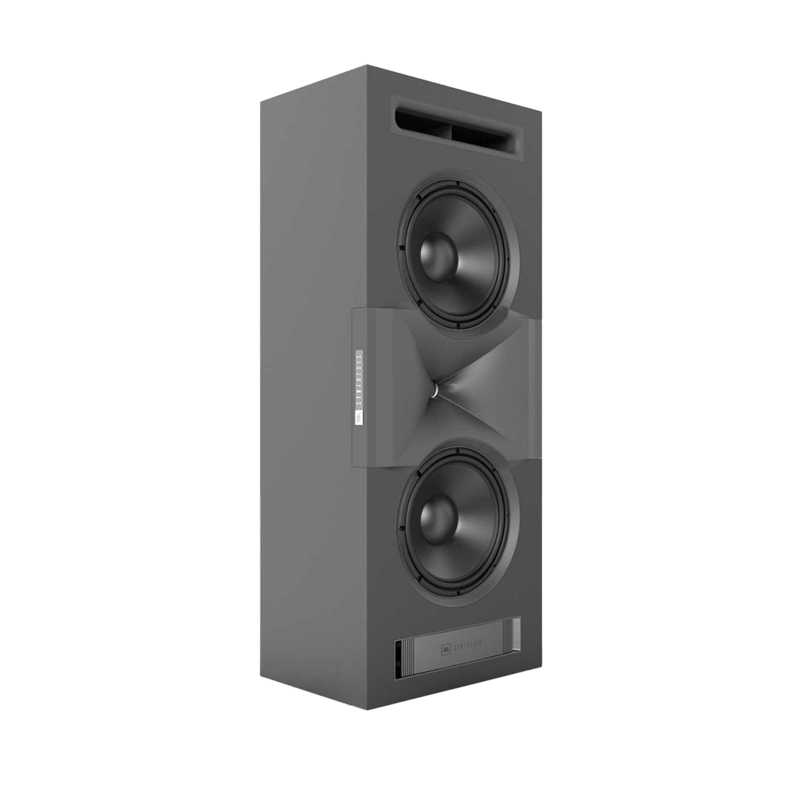

Synthesis Dual 12IN 2-WAY LCR Compression Driver Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 2-Way dual 12-inch (300mm) Flagship LCR loudspeaker delivers unparalleled performance in large theater rooms
• Optimized for custom installation behind projection screens and in custom cabinetry
• Timbre matched to all SCL loudspeakers and specially designed to be used with the SSW-1 subwoofer
• Patented D2430K 3-inch (75mm) dual Teonex® annular ring diaphragm, dual voice coil compression driver with dual neodymium motor structures mated to large coverage, High-Definition Imaging (HDI™) horn precision molded out of Sonoglass®
• Dual 12” (300mm) cast-frame Carbon Cellulose Composite Cone (C4) woofers in patented Complementary Bass Alignment System (CBAS™) enclosure design
• Bi-amplifier, bi-wire and network bypass capability with installer configurable crossover
• Heavily braced black vinyl clad cabinet built from 1-inch thick MDF with cloth-wrapped, edge to edge metal frame grille with magnetic attachment

Medidas y especificaciones (en inglés)

• Recommended Amplifier Power (Full bandwidth) 500 WRMS
• Recommended Amplifier Power (80 Hz HPF) 500 WRMS
• Impedance 4 Ohm
• Loudspeaker Sensitivity 94 dB/1W/1m
• Frequency Response 40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off
• Crossover Frequency 775 Hz
• Coverage area, -6 dB @ 10 kHz Approximately 120 degrees horizontal x 100 degrees vertical
• Coverage area, -6 dB @ 20 kHz Approximately 90 degrees horizontal x 70 degrees vertical
• Enclosure Type Complementary Bass Alignment System (CBAS™)
• HF Level Controls 3 Position - No grille, With grille, or With screen
• Grille Dimensions 47.98" H x 19" W x 0.787" D (1218.7mm x 482.6mm x 20mm)
• Product Dimensions 47.98" H x 19" W x 14.49" D (1218.7mm x 482.6mm x 368.1mm)
• Input Type Dual sets of gold-plated binding posts
• Product Weight 177.5 lb. (80.5kg)

Descripción del fabricante (en inglés)

2-Way Dual 12-inch (300mm) Custom LCR Loudspeaker The Flagship of the JBL Synthesis Custom Loudspeakers range, the SCL-1 features JBL’s patented D2430K dual 3-inch (75mm) compression driver mated to a large format High Definition Imaging (HDI™) horn. Integrated with dual 12-inch Carbon Cellulose Composite Cone (C4) cast-frame woofers bolted into a patented Complementary Bass Alignment System (CBAS™) enclosure, the SCL-1 delivers unparalleled performance in custom installations behind projection screens and inside custom cabinetry.
