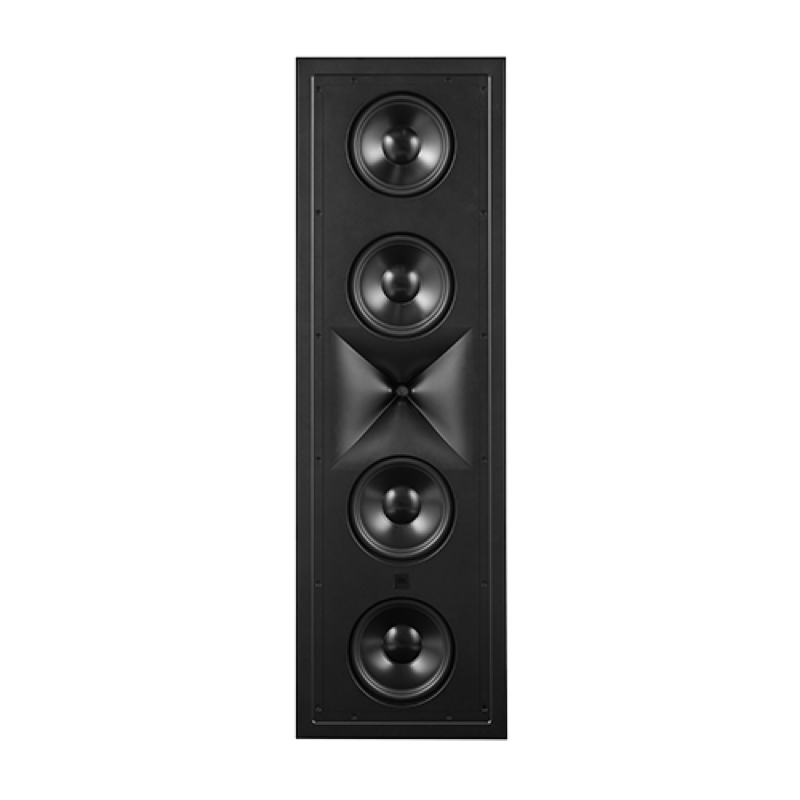

Synthesis 2.5-WAY Quad 8IN in-Wall Loudspeaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Patented D2815 1½-inch (38mm) dual diaphragm, dual motor compression driver
• Patented High-Definition Imaging horn geometry
• Sonoglass baffle with integrated MDF enclosure and isolation mounting system
• 8-inch (200mm) Advanced Aluminum Matrix cone, castframe woofers
• Premium crossover network components with bi-wire/biamp capability
• Dual set of gold-plated springloaded binding post input terminals
• Zero-bezel, magnetically attached paintable grille

Medidas y especificaciones (en inglés)

• Description
• Type: 2½-way in-wall loudspeaker
• Low Frequency Driver: Quadruple 8-inch (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
• High Frequency Driver: D2815, 1½” (38mm), dual annular ring Teonex®diaphragm compression driver mounted toSonoglass® horn/baffle
• Inputs: Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
• Audio Specifications
• Power Handling: 500 Watts RMS (CEA-426B specification, at rated load impedance)
• Frequency Response: 53Hz – 25kHz (-6dB)
• Coverage Angle (-6dB, averaged over 2kHz-10kHz ): 110° Horizontal, 90° Vertical
• Sensitivity (2.83V@1m): 92dB
• Impedance: 4Ω nominal, 3.2Ω minimum @ 800Hz
• Crossover Frequencies: 450Hz, 1.1kHz
• Physical Specifications
• Finished Dimensions with Grille: (H x W x D): 45.7” x 14.2” x 6.2” (1160mm x 360mm x 156.8mm)

Descripción del fabricante (en inglés)

The SCL-2XL is a custom in-wall loudspeaker perfectly suited for high output use as an LCR behind an acoustically transparent projection screen or as surrounds in larger systems. It features JBL’s patented D2815 dual 1½-inch (38mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Quadruple 8-inch (200mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2½-way network configuration, allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The integrated MDF enclosure is designed for installation in standard 2x6 wood frame construction, and internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-2XL delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.
