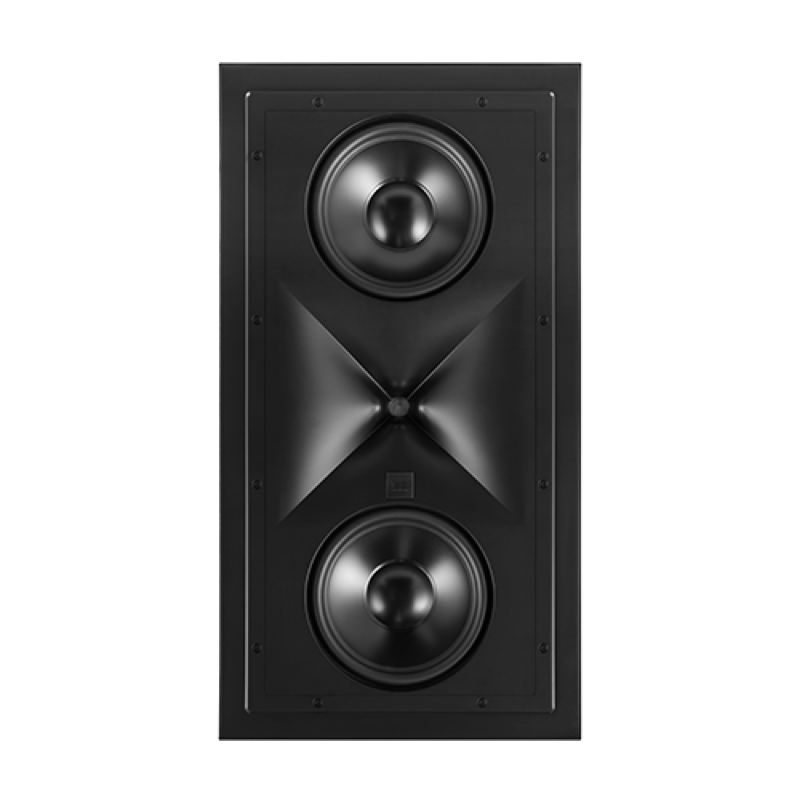

Synthesis 2-WAY Dual 8IN in-Wall Loudspeaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Patented JBL 2415-INV 1½-inch (38mm) HF compression driver
• Patented High-Definition Imaging horn geometry
• 8-inch (200mm) Advanced Aluminum Matrix cone, cast-frame woofers
• Molded baffle with integrated MDF enclosure and isolation mounting system
• Advanced crossover network with bi-wire/bi-amp capability
• Dual set of gold-plated spring-loaded binding post input terminals
• Zero-bezel, magnetically attached, paintable grille

Medidas y especificaciones (en inglés)

• Description
• Type: 2-way in-wall loudspeaker
• Low Frequency Driver: Dual 8-inch (200mm) cast-frame,
• Advanced Aluminum Matrix cone woofers High Frequency Driver: 2415-INV, 1½-inch (38mm) high frequency compression driver
• Inputs: Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
• Audio Specifications
• Power Handling: 300 Watts RMS (CEA-426B specification, at rated load impedance)*
• Frequency Response: 64Hz – 20kHz (-6dB)
• Coverage Area (-6dB, averaged over 2kHz-10kHz ): 110° Horizontal, 110° Vertical
• Sensitivity (2.83V@1m): 93dB
• Impedance: 4Ω nominal, 3.3Ω minimum @ 520Hz
• Crossover Frequencies: 1.16kHz
• Physical Specifications
• Finished Dimensions with Grille (H x W x D): 26.5” x 14.2” x 4.1” (672mm x 360mm x 105mm)

Descripción del fabricante (en inglés)

The SCL-4XL is a custom in-wall loudspeaker perfectly suited for use as an LCR behind an acoustically transparent projection screen in medium to large-sized rooms. Its 110° on-axis horizontal coverage makes it an ideal surround channel for larger rooms that require coverage for multiple rows of seats. It features JBL’s patented 2415-INV 1½-inch (38mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 8-inch (200mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2-way network configuration, allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The integrated MDF enclosure is designed for installation in standard 2x4-inch wood frame construction, and internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-4XL overall delivers extraordinary performance in a wide variety of applications, and is ideal for use in medium, large, and extra-large rooms.
