Synthesis 7IN 2-WAY Angled in Ceiling Compression Driver Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels
• 1-inch 2409H compression driver tweeter mated to a JBL patented offset High-Definition Imaging (HDI) horn assembly
• 7-inch (180mm) Advanced Aluminum Matrix cone, cast frame woofer with acoustic aperture waveguide baffle
• Patented Cat Claw installation mechanism
• Gold plated, spring-loaded binding posts

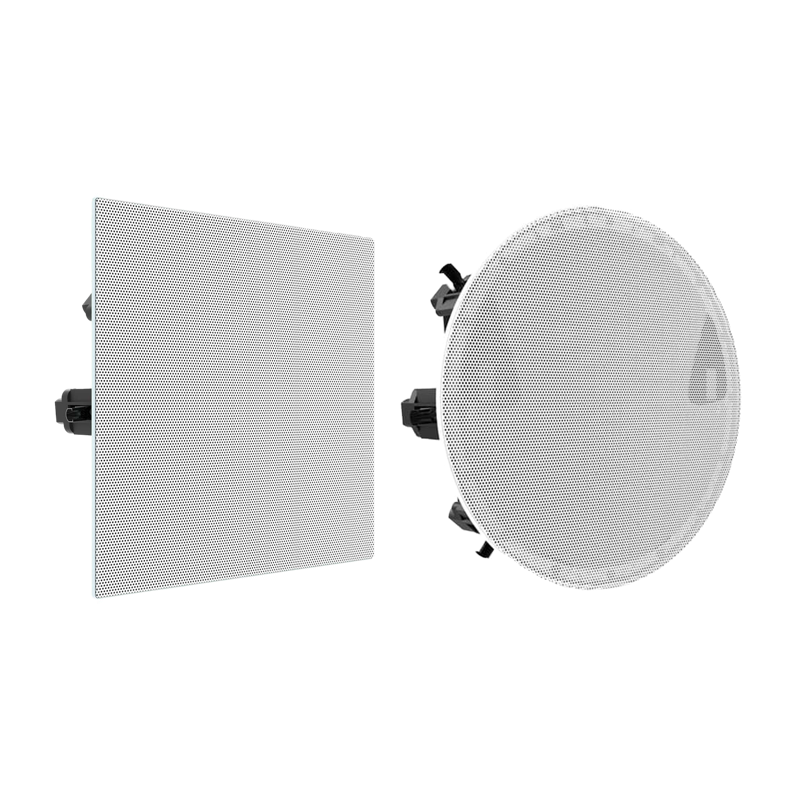

• Includes paintable round and square zero-bezel, magnetically attached grilles
• Compatible with CB10 pre-construction bracket

Medidas y especificaciones (en inglés)

• Recommended Amplifier Power 25 – 125W RMS
• Impedance 6 Ohm
• Loudspeaker Sensitivity 86 dB/2.83V/1m (2pi anechoic)
• Frequency Response 48Hz - 32kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency 1575 Hz
• High Frequency Coverage Angle (-6 dB) 60-degree Vertical (Up 30-degree, Down 30-degree, from 45-degree Vertical Center line), 120-degree Horizontal, from 2k Hz to 10k Hz.
• Enclosure Type Open back
• Controls Boundary Proximity Control
• Product Dimensions (with grille) 12.5" H x 12.5" W x 5.98" D (318 mm x 318 mm x 151.9 mm)
• Cut-out Diameter 11.2" (285 mm)
• Accessory Rough-in Bracket CB10
• Mounting Depth 5.58" (141.8 mm)
• Input Type Gold-plated spring-loaded binding posts
• Product Weight 8.6 lb. (3.9 kg), 9.2 lb. (4.2 kg) with one grille

Descripción del fabricante (en inglés)

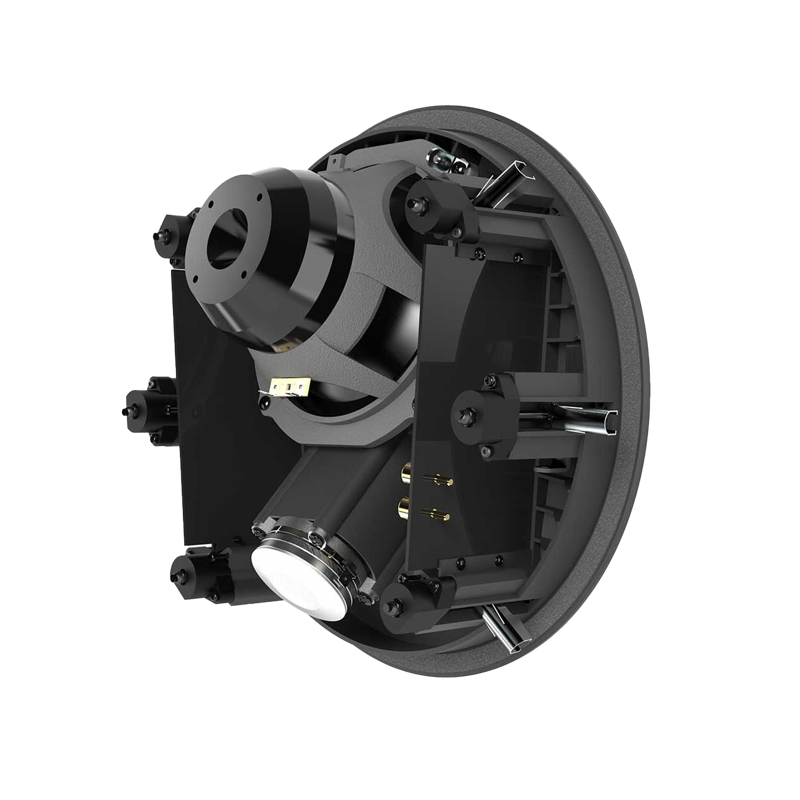

2-Way 7-inch (180mm) In-Ceiling Loudspeaker The SCL-5 is the highest performing round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in medium to large size rooms. The SCL-5 features JBL’s patented 2409H 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 7-inch (180mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide.
