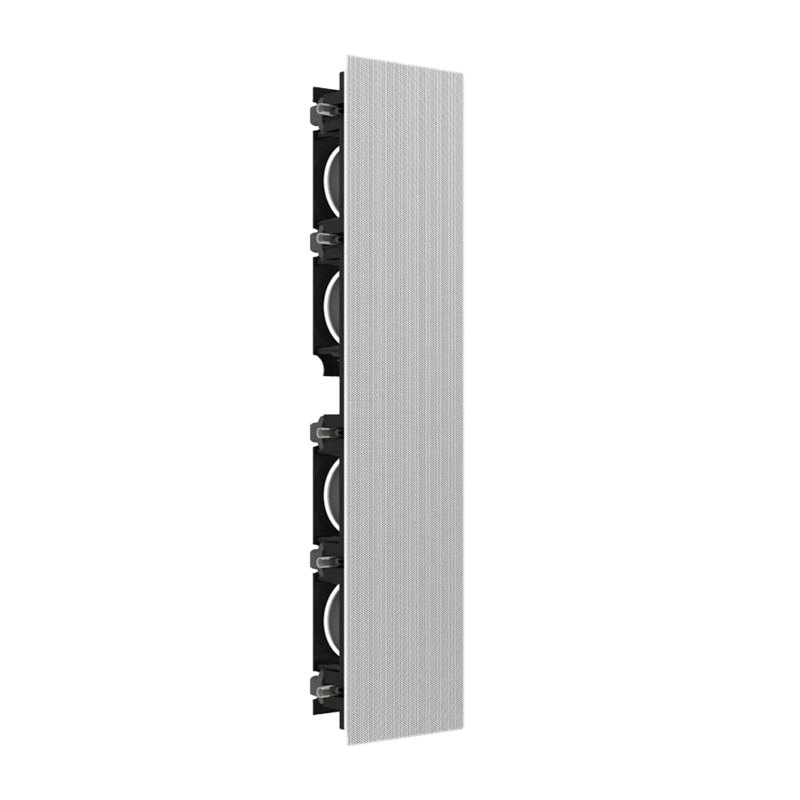

Synthesis 5.25IN - in-Wall Compression Driver Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Features
• 2.5-way in-wall loudspeaker system designed for on-axis listening as LCR and surround channels
• 1-inch 2410H-2 compression driver tweeter mated to a JBL patented High-Definition Imaging (HDI™) horn precision molded baffle assembly

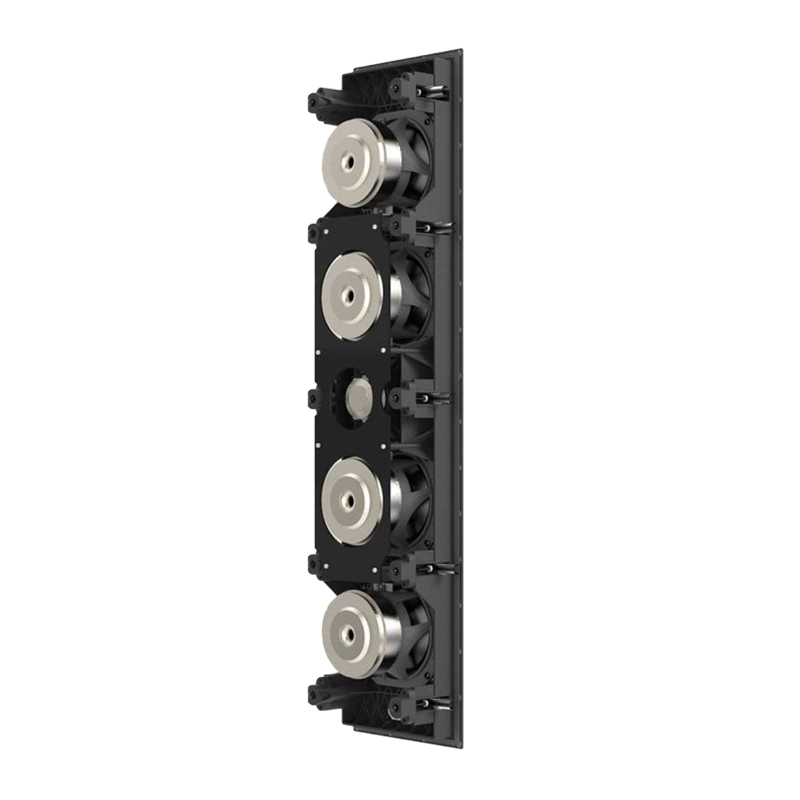

• Four 5.25-inch (130mm) Advanced Aluminum Matrix cone cast frame woofers
• Can be mounted vertically or horizontally
• Patented Cat Claw installation mechanism
• Gold plated, spring-loaded binding posts
• Includes paintable zero-bezel, magnetically attached grilles

Medidas y especificaciones (en inglés)

• Recommended Amplifier Power 25 – 200W RMS
• Impedance 4 Ohm
• Loudspeaker Sensitivity 91 dB/2.83V/1m (2pi anechoic)
• Frequency Response 50Hz - 30kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency 1.8 kHz
• High Frequency Coverage Angle (-6 dB) 80° Vertical / 80° Horizontal, from 2 kHz to 17 kHz.
• Enclosure Type Open back
• Controls Boundary Proximity Control
• Product Dimensions (with grille) 7.29” (185 mm) x 31.32” (796 mm) x 3.82” (97.1 mm)
• Cut-out Dimensions 6.18” (157 mm) x 30.18” (766 mm)
• Rough-in Bracket WB54
• Mounting Depth 3.63” (92 mm)
• Product Weight 22.2 lbs (10.07 kg)
• Shipping Weight 25.6 lbs (11.61 kg)

Descripción del fabricante (en inglés)

2.5-Way Quadruple 5.25-inch (130mm) In-Wall Loudspeaker The SCL-6 is the largest in-wall model in the expanded JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in medium to large size rooms. The SCL-6 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to a High Definition Imaging (HDI™) horn.
