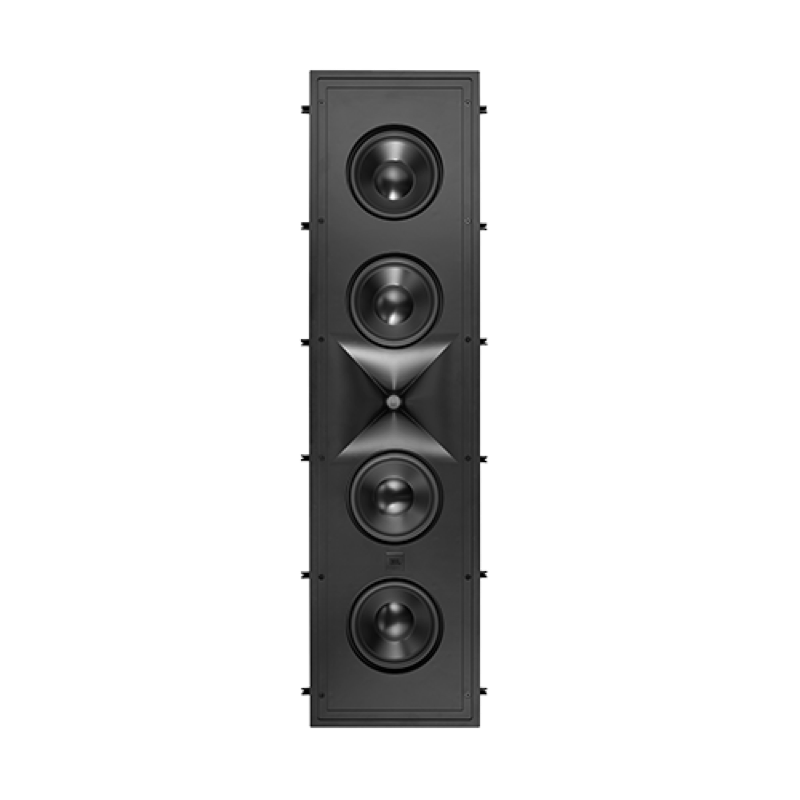

Synthesis 2.5-WAY Quad 6.5IN in-Wall Loudspeaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Patented JBL 2415-INV 1½-inch (38mm) HF compression driver
• Patented High-Definition Imaging horn geometry
• 6½-inch (165mm) Advanced Aluminum Matrix cone, castframe woofers
• Advanced crossover network, with bi-wire/bi-amp capability
• Dual set of gold-plated springloaded binding post input terminals
• Patented Cat Claw installation mechanism for quick and easy installation
• Zero-bezel, magnetically attached paintable grille

Medidas y especificaciones (en inglés)

• Description
• Type: 2 ½ -way in-wall loudspeaker
• Low Frequency Driver: Quadruple 6½-inch (165mm) Advanced Aluminum Matrix cone, cast-frame woofers
• High Frequency Driver: 2415-INV, 1½-inch (38mm) high frequency compression driver
• Inputs: Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
• Audio Specifications
• Power Handling: 200 Watts RMS (CEA-426B specification, at rated load impedance)*
• Frequency Response: 35Hz – 20kHz (-6dB)
• Coverage Angle: (-6dB, averaged over 2kHz-10kHz): 110° Horizontal, 100° Vertical
• Sensitivity: (2.83V@1m) 90dB
• Impedance: 4Ω nominal, 3.8Ω minimum @ 650Hz
• Crossover Frequencies: 105 Hz, 1.45 kHz
• Physical Specifications
• Finished Dimensions with Grille: (H x W x D): 39.8” x 10.6” x 4.0” (1009mm x 271mm x 102mm)

Descripción del fabricante (en inglés)

The SCL-6XL is a custom in-wall loudspeaker perfectly suited for use as an LCR in medium sized rooms behind an acoustically transparent projection screen. Its 110° on-axis horizontal coverage makes it an ideal surround channel for larger rooms that require coverage for multiple rows of seats. It features JBL’s patented 2415-INV 1½-inch (38mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Quadruple 6½-inch (165mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2 ½ -way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. It is designed for installation in standard 2x4-inch wood frame construction, and internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-6XL delivers extraordinary performance in a wide variety of applications and is ideal for use in medium and large-sized rooms.
