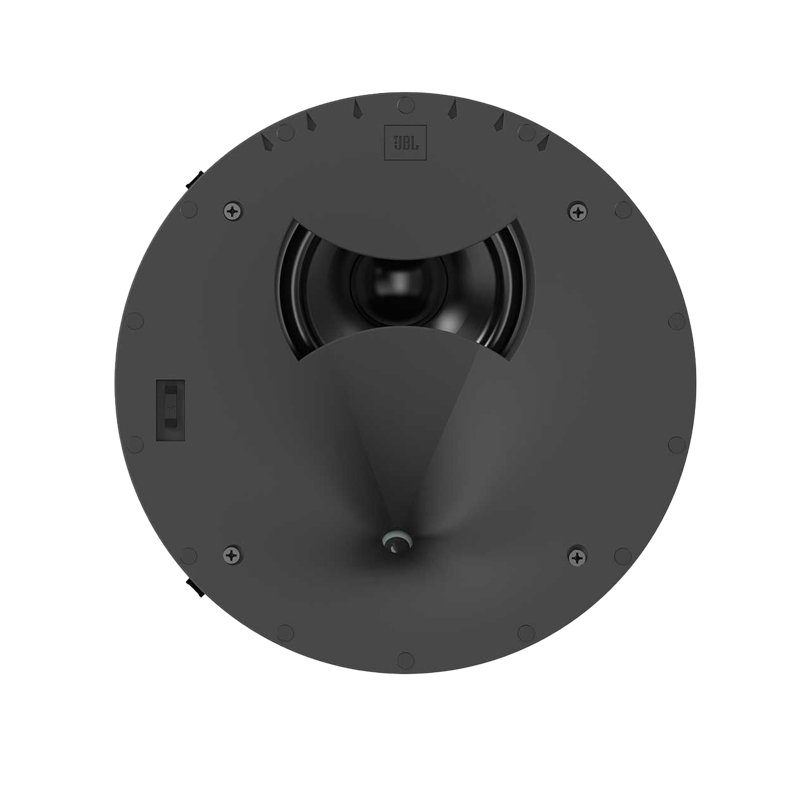

Synthesis 5.25IN 2-WAY Angled in Ceiling Compression Driver Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels
• 1-inch 2410H-2 compression driver tweeter mated to a JBL patented offset High-Definition Imaging (HDI™) horn assembly
• 5.25-inch (130mm) Advanced Aluminum Matrix cone, cast frame woofer with acoustic aperture waveguide baffle

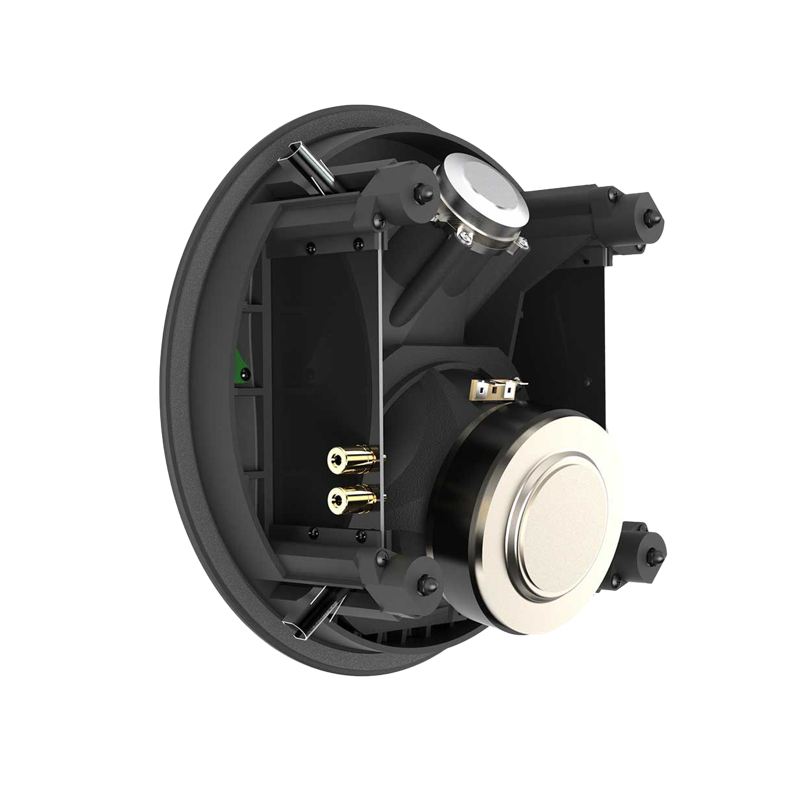

• Patented Cat Claw installation mechanism
• Gold plated, spring-loaded binding posts

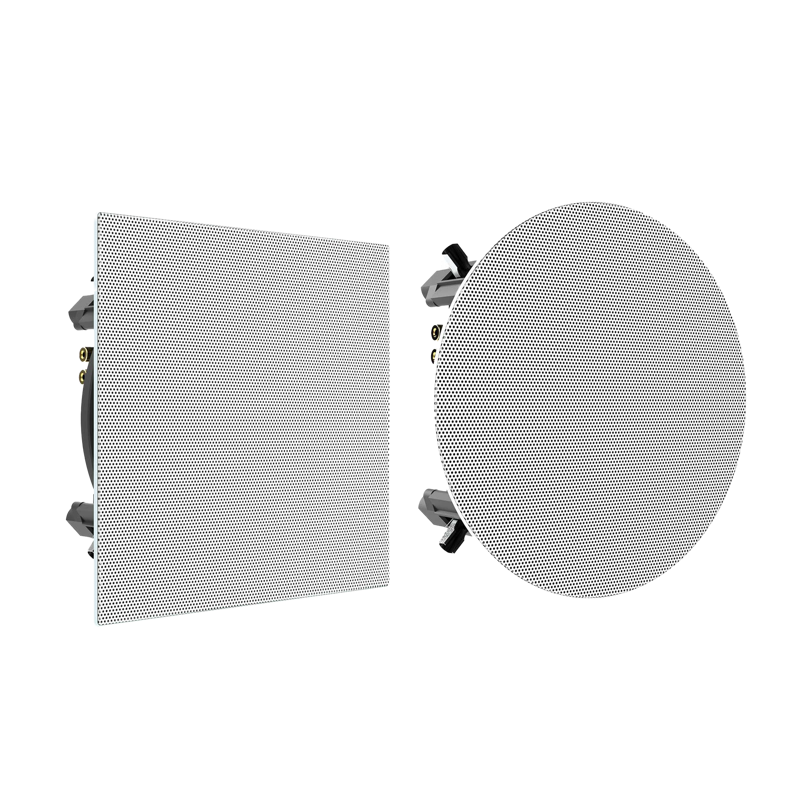

• Includes paintable round and square zero-bezel, magnetically attached grilles

Medidas y especificaciones (en inglés)

• Recommended Amplifier Power 25 - 100 W RMS
• Impedance 4 Ohm
• Loudspeaker Sensitivity 85 dB/2.83V/1m (2pi anechoic)
• Frequency Response 55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency 1.8 kHz
• High Frequency Coverage Angle (-6dB) 60° Vertical (Up 30°, Down 30°, from 45° Vertical Center line), 120° Horizontal, from 2k Hz to 10k Hz.
• Warranty 5 Years
• Grill Dimensions (Square) 10.77” (273 mm) x 10.77” (273 mm)
• Grille Dimensions (Round) 10.77” (273 mm) Diameter
• Product Dimensions (with grille) 10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm)
• Cut-out Diameter 9.72” (247 mm)
• Accessory Rough-in Bracket CB8
• Mounting Depth 4.54” (115 mm)
• Product Weight 7.8 lb. (3.5 kg)

Descripción del fabricante (en inglés)

2-Way 5.25-inch (130mm) In-Ceiling Loudspeaker The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in small to medium size rooms. The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide.
