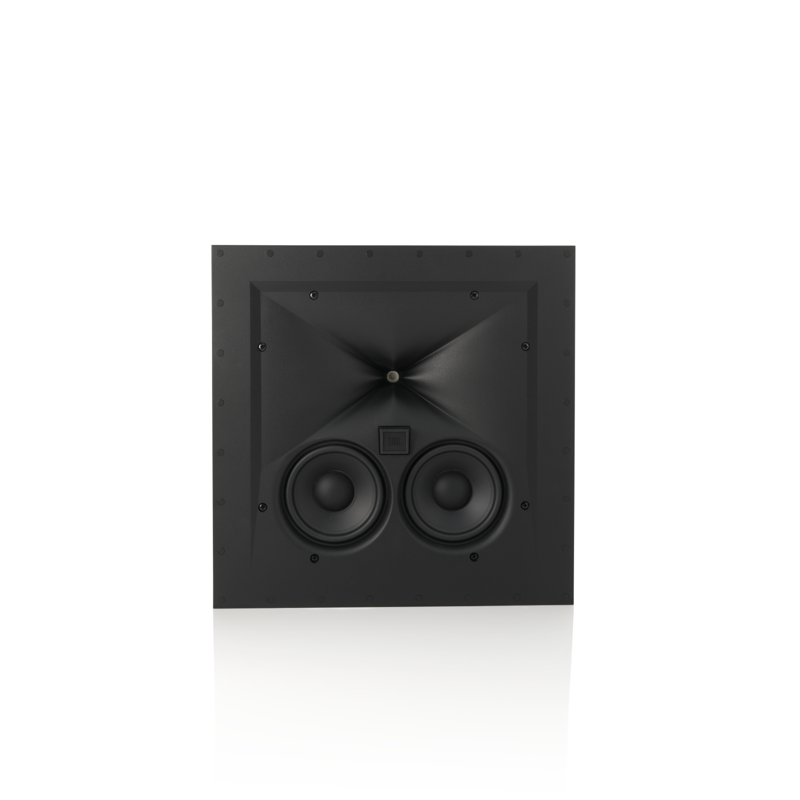

Synthesis Dual 5-IN 2-WAY in-Wall Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Two-way dual 5-¼ in / 130mm driver configuration
• 5.8in (147mm) deep square footprint enclosure
• Mountable in any orientation
• Computer Optimized HDI Constant Directivity Horn
• 2409H, 1 in / 25mm annular ring Teonex diaphragm compression driver with advanced HDI geometry horn
• Powerful cast-frame, Advanced Aluminum Matrix cone woofers with low-distortion neodymium motor structures
• Solid, wood enclosure installs behind drywall and provides optimized acoustic performance
• Unique Center-Mount feature clamps center of baffle to rear of MDF enclosure to greatly minimize unwanted baffle resonances
• Network is Bi-Wire and Bi-Amp capable using gold plated 5-way binding posts used on rear enclosure and baffle network assembly

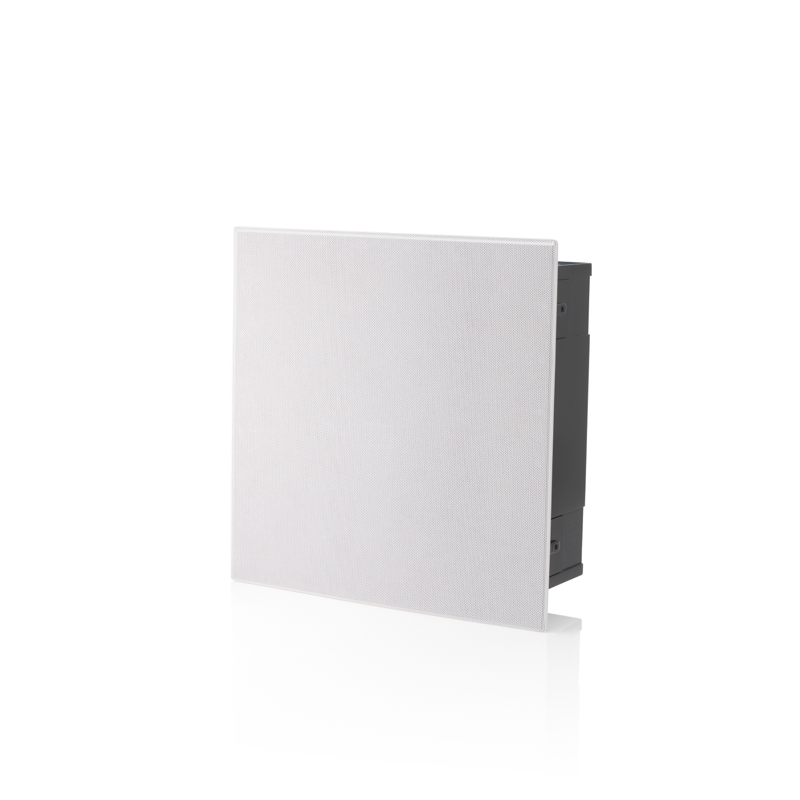

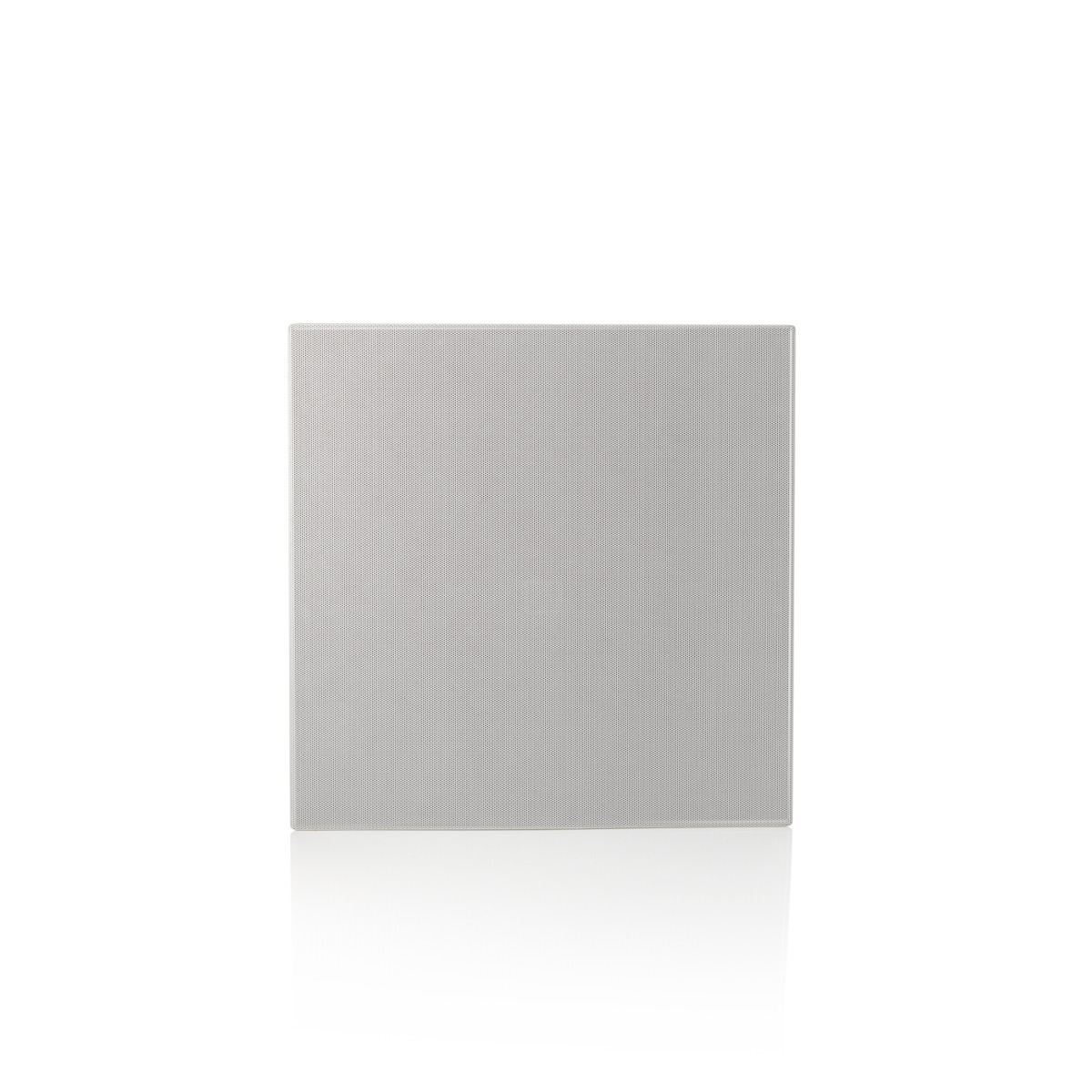

• Zero-bezel, magnetically-attached paintable grille

Medidas y especificaciones (en inglés)

• Speaker type: 2-way in-wall/in-ceiling loudspeaker
• Low frequency transducer: Dual 5.25 in (130 mm) cast-frame, Advanced Aluminum Matrix cone woofers
• Mid/High frequency transducer: D2-derived 2409H, 1 in (25mm), annular ring Teonex diaphragm compression driver
• Maxi recommended amplifier power: 300 watts RMS
• Frequency response (-6dB on-axis): 65Hz – 33kHz
• Coverage area (-6dB@20kHz): 90 x 60 Degrees (Hor x Vert)
• Coverage area (-6dB@10kHz): 110 x 90 Degrees (Hor x Vert)
• Sensitivity (2.83V@1m): 91dB
• Nominal impedance: 6 Ohm
• Crossover frequencies: 1.3kHz
• Enclosure type: Sealed in-wall mount with included back box
• Inputs: Dual gold-plated five-way binding posts
• Finished grille dimensions (H x W): 16.45 x 16.45 in (418 x 418 mm)
• Cutout dimensions with backbox (H x W): 14.2 x 14.2 in (360 x 360 mm)

Descripción del fabricante (en inglés)

The JBL brand has become synonymous with the cinema experience. The SCL-3 was designed to continue this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The dual 5.25 in cast frame aluminum woofers are ideal for in-wall or ceiling mounting. Utilizing the D2-derived 1 in / 25 mm annular ring compression driver with Teonex diaphragm and an advanced HDI geometry horn, the SCL-3 provides unparalleled performance compared to any in-wall loudspeaker in the market today.
