Synthesis 7-IN 2-WAY in-Wall Speaker

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Two-way 7 in (180mm) driver configuration – a direct drop-in replacement for the S4Ai footprint
• 3.8 in (96.5 mm) deep enclosure fits standard 2 x 4 walls. The self-contained baffle system can alternatively be mounted without the rear enclosure for restricted depth applications
• Mountable in any orientation
• Computer Optimized HDI Constant Directivity Horn with very smooth and predictable off axis behavior over a wide coverage area
• 2409H, 1 in (25 mm) annular ring Teonex diaphragm compression driver with advanced HDI geometry horn
• Powerful cast-frame, Advanced Aluminum Matrix cone woofer with low-distortion Ferrite motor structure

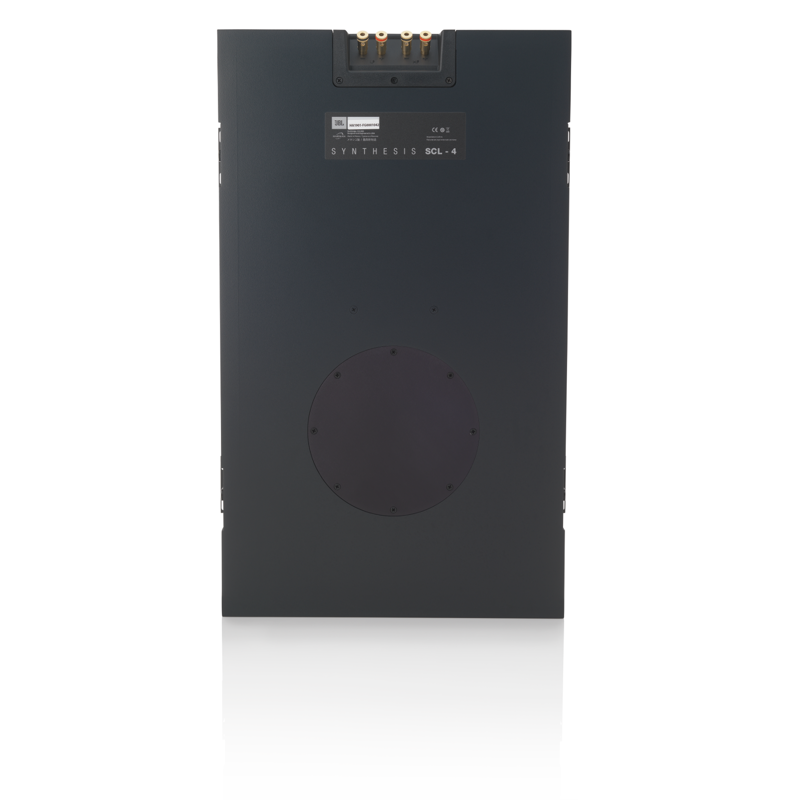

• Solid, wood enclosure installs behind drywall and provides optimized acoustic performance
• Network is Bi-Wire and Bi-Amp capable using gold plated 5-way binding posts used on rear enclosure and baffle network assembly

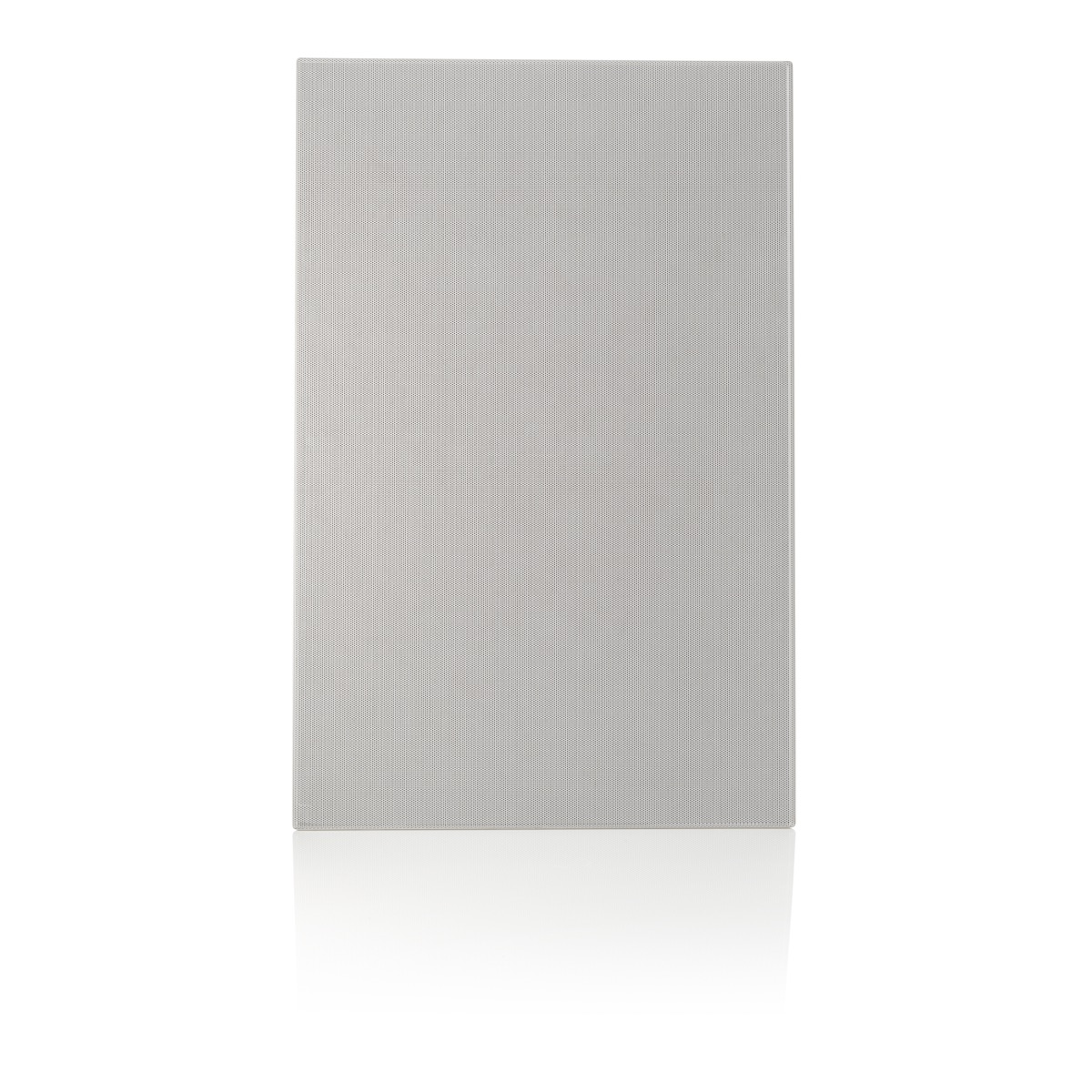

• Zero-bezel, magnetically-attached paintable grille

Medidas y especificaciones (en inglés)

• Speaker type: 2-way in-wall/in-ceiling loudspeaker
• Low frequency transducer: 7 in (180 mm) cast frame, Advanced Aluminum Matrix cone woofer
• Mid/High frequency transducer: D2-derived 2409H, 1 in (25mm), annular ring Teonex diaphragm compression driver
• Max recommended amplifier power: 300 watts RMS
• Frequency response (-6dB on-axis): 45Hz – 33kHz
• Coverage area (-6dB@20kHz): 100 x 100 Degrees (Hor x Vert)
• Coverage area (-6dB@10kHz): 120 x 120 Degrees (Hor x Vert)
• Sensitivity (2.83V@1m): 91dB
• Nominal impedance: 6 Ohm
• Crossover frequencies: 1.3kHz
• Enclosure type: Sealed in-wall mount with included back box
• Inputs: Dual gold-plated five-way binding posts
• Finished grille dimensions (H x W): 25.35 x 16.45 in (644 x 418 mm)
• Cutout dimensions with backbox (H x W): 23.93 x 14.2 in (608 x 360 mm)

Descripción del fabricante (en inglés)

The JBL brand has become synonymous with the cinema experience. The SCL-4 continues this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The 7 in cast-frame aluminum-cone woofer is ideal for in-wall or ceiling mounts. Utilizing the D2-derived 1 in / 25 mm annular ring Teonex diaphragm compression driver with advanced HDI geometry horn, the SCL-4 provides extraordinary performance in a very small package.
