EL16: 16 Channel 2U 4K NVR Up to 32MP Cameras (16TB Storage)

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 16 Channels
• Up To 32MP
• 384Mbps Bandwidth
• 8 HDDs
• 16TB HDD
• RAID 0,1,5,6,10
• ICR OS 4.0
• 2 Gigabit RJ-45
• AI+ IVS Support
• 4 USB
• Alarm 16/8
• 2 HDMI +1 VGA
• ONVIF 2.4 Conformant

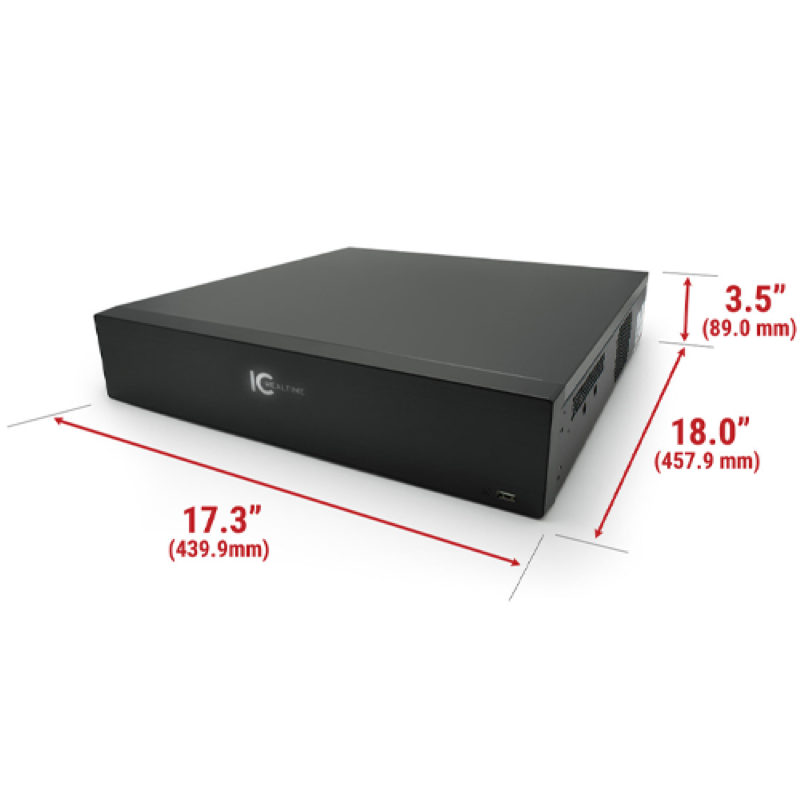

• 2U | Rack Mountable

Medidas y especificaciones (en inglés)

• System
• Main Processor: Multi-core embedded processor
• Operating System: Embedded LINUX, ICR 4.0
• Display
• Display Interface: 2-channel VGA, 2-channel HDMI video output.
• Display Resolution: HDMI: Up to 4K
• VGA: Up to 1080p
• Mixed video source output for HDMI1 and HDMI2, Simultaneous video source output for VGA1 and HDMI1, Simultaneous video source output for VGA2 and HDMI2
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Display Split:1st Screen: 1/4/8/9/16
• 2nd Screen: 1/4/8/9/16
• HDMI Decoding:AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps
• AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps
• Intelligence

Descripción del fabricante (en inglés)

INVR-EL16-2U32MP1 adds Artificial Intelligence to the camera system, and installation uses 16 or fewer cameras running on remote POE switches. IC Realtime’s new 16-channel 4K AI-NVR is the ideal dual-network port “network appliance” solution. The NVR-EL16-2U32MP1 handles cameras up to 32MP and adds vast new AI detection, internal database recognition, metadata & business intelligence skills onboard. This unit employs AI enhancements in functions ranging from H.265+/H.265/Smart H.264+/H.264/ MJPEG video compression to stream management, human, face, vehicle and license plate detection and recognition. It can handle up to 20 face databases with 20,000 images (total capacity of 2.5 GB). When combined with its massive 384bps processing throughput, the NVR-EL16-2U32MP1 takes Artificial Intelligence to the next level of customizable overwatch performance. IC Realtime’s FlexSmartAi system flexibly splits AI-enhanced skills between cameras and recorder; the NVR-EL16 enables both camera and NVR-based Intelligent Video System (IVS), with 8 channels of NVR-based AI-enhanced iMD detection and on all 16 channels with camera-based IMD (Intelligent Motion Detection), plus perimeter protection, heat mapping, face detection and recognition, people counting to operate at full capacities. Future-proof out of the box, NVR-EL16-2U32MP1 uses IC Realtime’s new ICR 4.0 operating system and works perfectly with both existing IC Realtime & multiple manufacturers’ network cameras, and comes ready for I
