For Savant Ascend WFB-1G - New Constuction

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Sits flush with the wall
• Paintable with any color and texture
• Includes depth calibration mechanism
• Adapter is supplied unpainted to be painted after installation as part of the wall
• Designed to be installed in ½” drywall. Easy installation process that is similar to drywall construction procedures. Before installation, read Wall-Smart installation instruction 10-04-00101-INS in www.wallsmart.com/faq
• For installation in concrete/brick wall use WS Concrete Box 200x160 P/N 10-01-181 (sold separately) according to installation instruction 10-04-00103-INS in www.wall-smart.com/faq
• Designed for the use with SAVANT ASCEND WFB-1G. (Keypad not included)

Medidas y especificaciones (en inglés)

• Dimensions (WxHxD): 157.5mm (6.2in) x 198.1mm (7.8in) x 44mm (1.73in)
• Power Supply: None (manual adapter)
• Weight: 0.4kg (0.88lbs)
• Material: Moisture resistant MDF (compliant with TSCA Title VI)
• To be installed in ½” drywall. For installation in 5/8” drywall use 1/8” shim pack P/N 10-01-067 (sold separately)

Descripción del fabricante (en inglés)

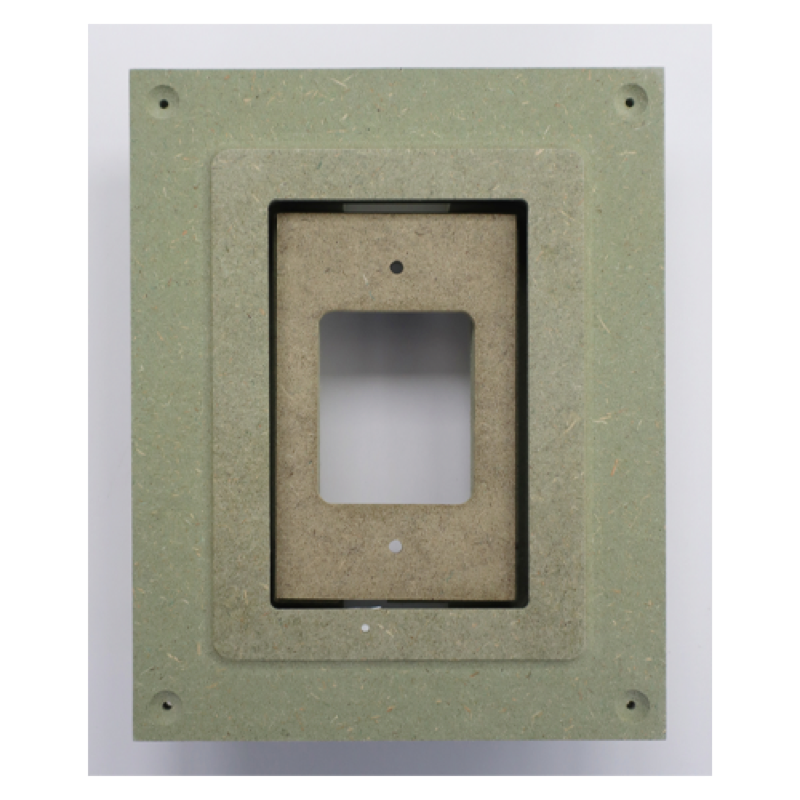

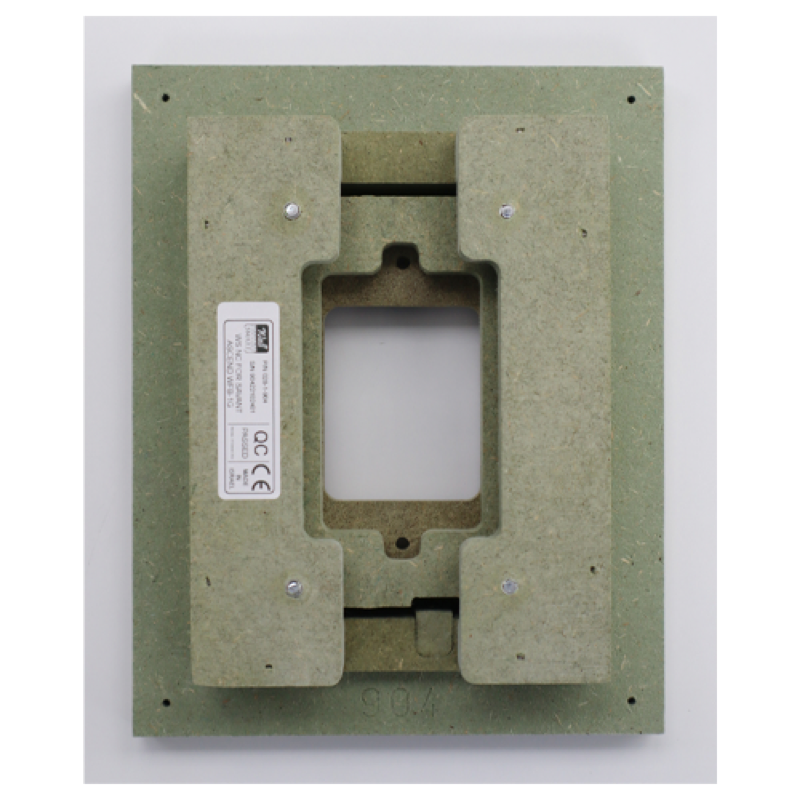

The Wall-Smart for Savant Ascend WFB-1G - New Construction is an adapter for in-wall flush installation of a Savant Ascend 1Gang keypad. It firmly mounts to the keypad while allowing easy access, insertion and removal.
