Subwoofer Amplifier for JBLSSW4 and JBLC82W

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Connect up to two SSW-4 Subwoofers with each SDA-1700 Amplifier
• 2 EQ modes (Customized for in-wall subwoofers)
• User-adjustable single-band equalization
• Low distortion and low noise
• Short-circuit and over-current protection
• Over-temperature compensation
• Automatic signal sensing Turn-On and Turn-Off

Medidas y especificaciones (en inglés)

• Rated Output Power (RMS) into the minimum impedance of 4 Ohms: 700Watts
• Peak power: 1500W
• Rated impedance: 8Ohms per speaker output
• Minimum load impedance: 4Ohms
• Model-Specific EQ:1: Only for JBL SYNTHESIS SSW-4
• 2: Only for JBL C82W
• Input Sensitivity to 1W @ 50Hz: 16.3mVrms +/- 1dB (Single input driven) Gain=41.7dB
• Input Overload (Both inputs driven): ≥ 2.0Vrms
• Input Impedance: > 10K Ohms
• Low Pass Crossover range: 50-150Hz
• Auto Turn On Input Sensitivity @ 50Hz: Typical 10mV
• THD+N at 1W: < 0.3%
• THD+N at Rated Output Power: < 1%
• Signal-to-Noise ratio to 1W: > 65dBA

Descripción del fabricante (en inglés)

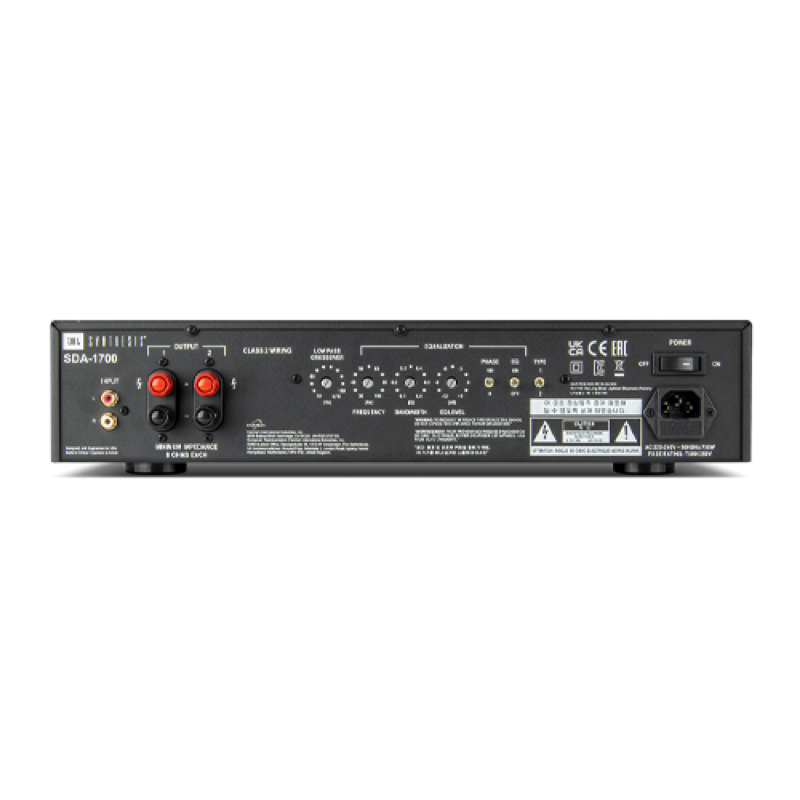

The JBL SDA-1700 Amplifier is a custom amplifier solution, optimized for the highest level of performance and reliability. It includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of JBL Synthesis custom in-wall subwoofer system, this rack mountable Class D component is designed to power the SSW-4 in-wall subwoofer and Conceal C82W invisible subwoofer.
