Synthesis 8-CHANNEL Bridgeable Class D Amplifier

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• High-powered amplification with bridgeable outputs in a compact rack stackable design
• Designed to support high-power and high-channel-count systems as part of a complete JBL Synthesis system solution
• Flexible design with bridgeable channels - suitable for all JBL Synthesis loudspeakers
• Full input and output Hi-Resolution DSP suite including EQ, Delay, and Limiters
• Optimized for residential applications with a CI focused UI and feature set
• DANTE / AES 67 Ready*digital audio networking

Medidas y especificaciones (en inglés)

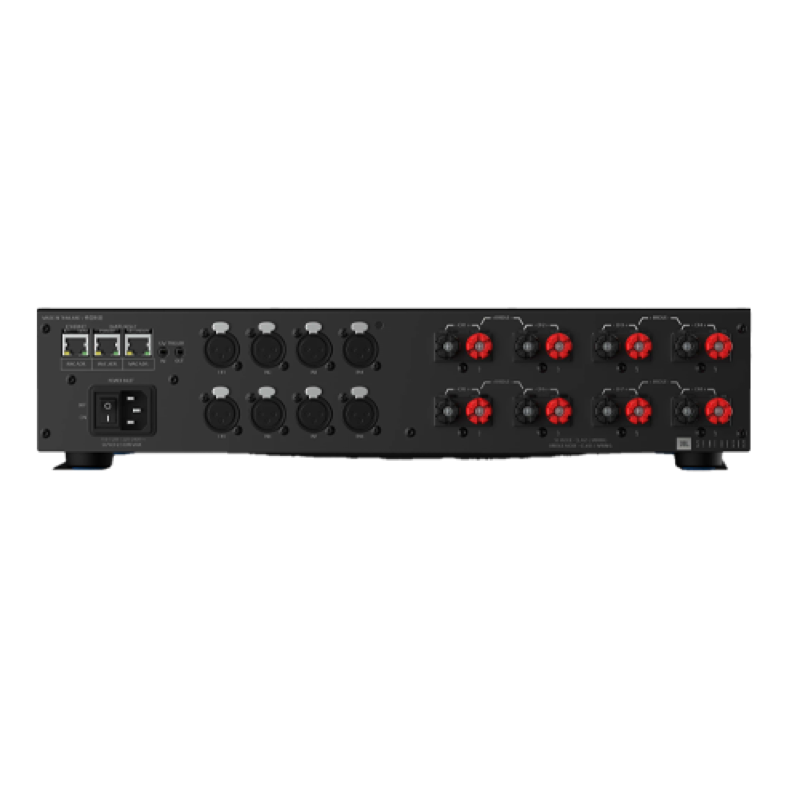

• Connectors
• Analog audio input: 8x XLR (Balanced)
• Digital audio input (Dante/AES67): 2x RJ45
• Speaker output: Binding Posts, accommodates 10AWG wire, spade, and banana termination
• 12VDC trigger control: 1x 3.5mm (in) and 1x 3.5mm (out)
• Network/Monitoring/Control: 1x RJ45
• Power: Standard IEC
• Power (2 channels driven, <0.5% THD)
• Rated Power (8Ω): 750W
• Rated Power (4Ω): 1,500W
• Rated Power (8Ω Bridged, one zone driven): 2,500W
• Performance
• Digital signal processing: 96kHz, 32-bit floating point
• Frequency response (4Ω, 20Hz – 20kHz): ±0.5dB

Descripción del fabricante (en inglés)

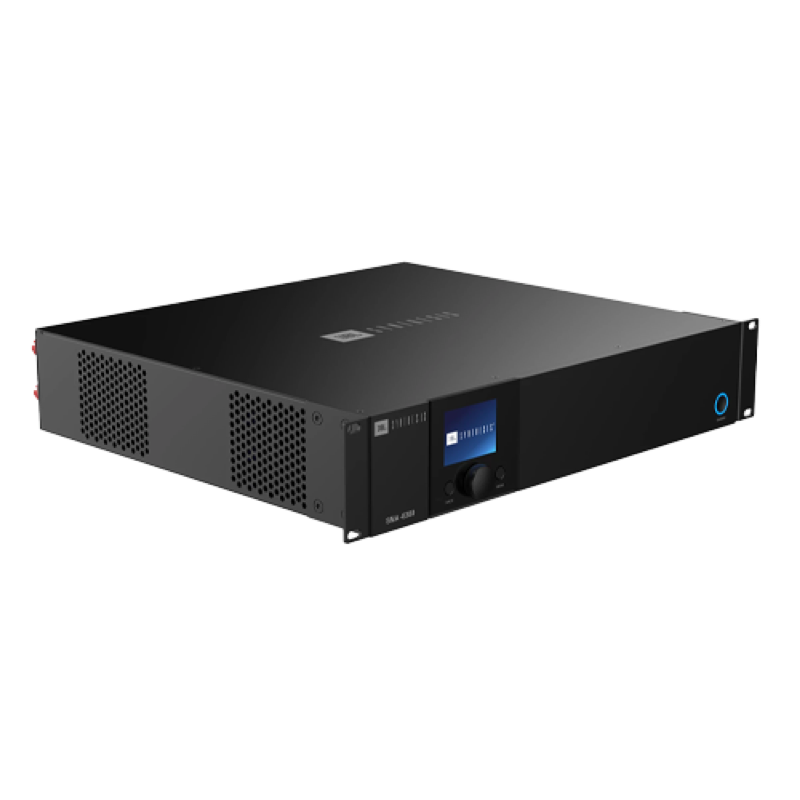

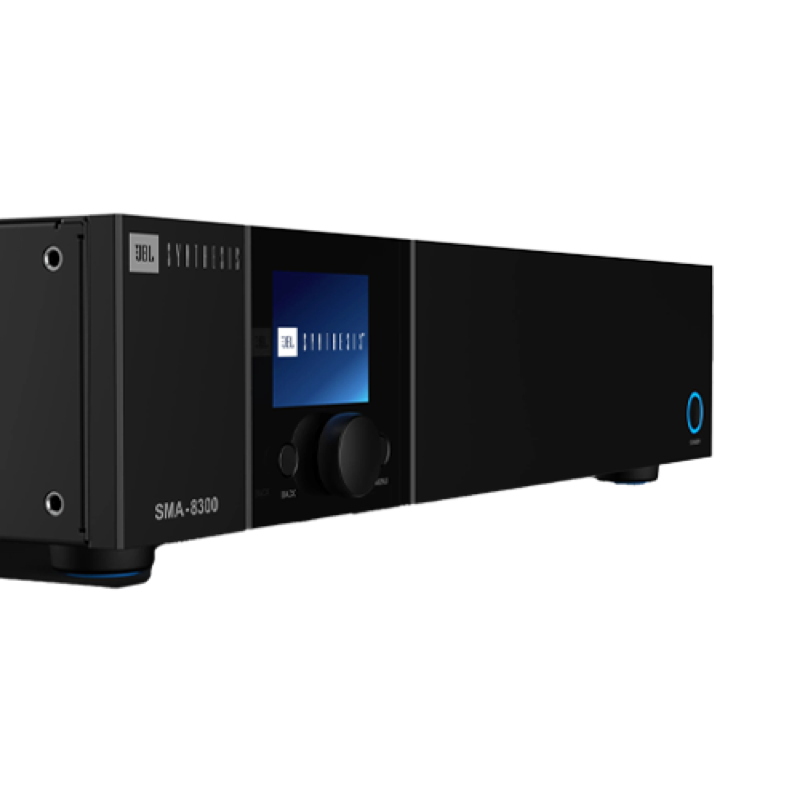

The SMA-8300 is a versatile 8-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 300W into 8 ohms and adjacent channel pairs can be bridged to deliver 1,200W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, and height channel loudspeakers as well as subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.
