Mist AP12 WiFi 6 802.11ax Indoor Wallpate Access Point - Non-US Only

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• High Performance WiFi 6 802.11ax
• Tri-radio 2x2:2SS with max data rate of 1,200 Mbps in 5GHz band and 575 Mbps in 2.4GHz band.

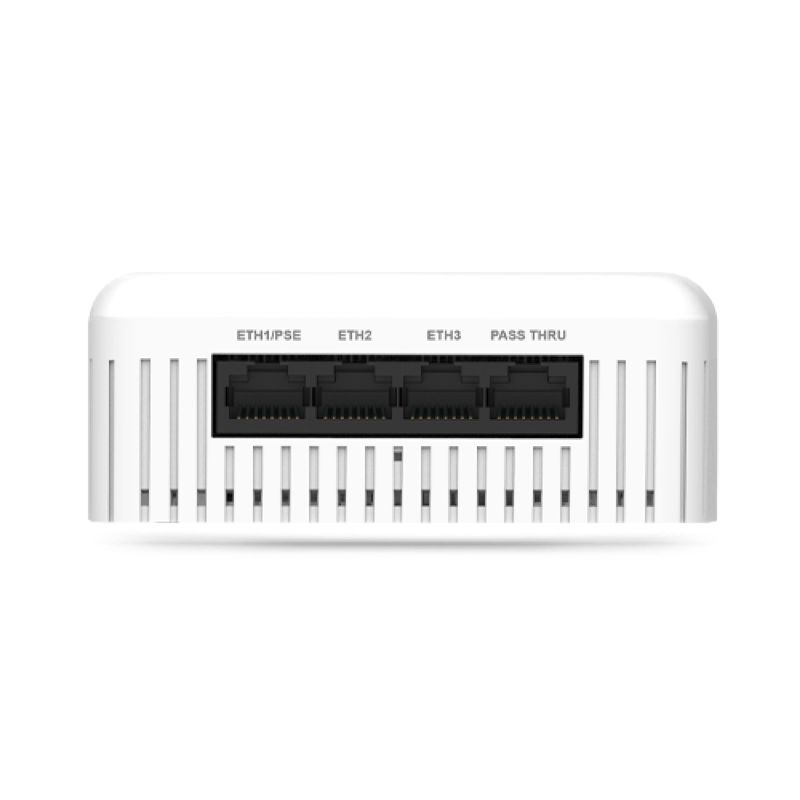

• The wall plate AP12 access point with Five Ethernet ports enable flexible deployment while providing multiple IT and IoT device connections.
• Automatic RF Optimization: Radio Resource Management (RRM) automates dynamic channel and power assignment, taking Wi-Fi and external sources of interference into account with its dedicated sensor radio.
• Unprecedented Insight and Action: A dedicated dual-band third radio collects data for our patent-pending Proactive Analytics and Correlation Engine (PACE).
• Dynamic Packet Capture: The Juniper Mist Cloud Architecture automatically captures packets and streams them to the cloud when major issues are detected.
• Effortless, Cloud-Based Setup and Updates: The AP12 automatically connects to the Juniper Mist Cloud Architecture, downloads its configuration, and joins the appropriate network.
• Improved Battery Efficiency for IoT Devices: By incorporating the 802.11ax Target Wake Time (TWT) capability and Bluetooth 5.0, battery life for IoT devices can be extended as new IoT devices enter the network.
• Dynamic Debugging: Constantly monitor services running on the AP12 Series and send alerts whenever a service behaves abnormally.

Medidas y especificaciones (en inglés)

• Technical Specifications:
• Wi-Fi Standard: 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), and Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac
• Combined Highest Supported Data Rates 1.8 Gbps
• 2.4 GHz 2x2:2 802.11b/g/n up to 400 Mbps data rate; 2x2:2 802.11ax up to 575 Mbps data rate
• 5 GHz 2x2 : 2 802.11ax up to 1,200 Mbps data rate
• MIMO Operation:Two spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate to individual 2x2 HE80
• Two spatial stream Multi User (MU) MIMO for up to 1,200 Mbps wireless data rate to up to four MUMIMO-capable client devices simultaneously
• Dedicated Third Radio 2.4GHz and 5GHz dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
• Internal Antennas 2.4GHz omnidirectional antennas with 3 dBi peak gain; 5GHz omnidirectional antennas with 6 dBi peak gain
• Bluetooth 5.0: Omnidirectional Bluetooth antenna
• Beam Forming: Transmit Beamforming and Maximal Ratio Combining
• Power Options 802.3af/at PoE
• Dimensions: 150 x 100 x 40 mm (5.9 x 3.9 x 1 in)
• Weight: 0.6 kg (1.3 lbs) excluding mount and accessories

Fichas técnicas y manuales

• Ficha técnica · Savant Network AI with Juniper Mist AP12 (PDF)

Descripción del fabricante (en inglés)

The wall plate AP12 access point is a tri-radio 2x2:2SS 802.11ax access point with maximum data rates of 1,200 Mbps in the 5GHz band and 575 Mbps in the 2.4GHz band. The integrated 3rd radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor. By adding 802.11ax Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO), and BSS Coloring technologies, performance is boosted to unprecedented levels to support new bandwidth hungry applications and soaring device densities. It supports an aggregate data rate up to 1.8 Gbps concurrently on both 2.4GHz and 5GHz radios. Managed by Juniper Mist Cloud Architecture, the AP12 access point leverages machine learning and AI to optimize radio resource management and deliver unprecedented user experiences for today's smart home. Note: The AP12 requires 802.3at power (PoE+ 25.5W) only when PoE out functionality is used. If PoE out is not required, the AP12 can fully operate under 802.3af power (PoE 15.4W). For use in non-US approved countries only due to regulatory compliance. Requires active Savant Smart Networking subscription for deployment and ongoing cloud management, monitoring & support.
