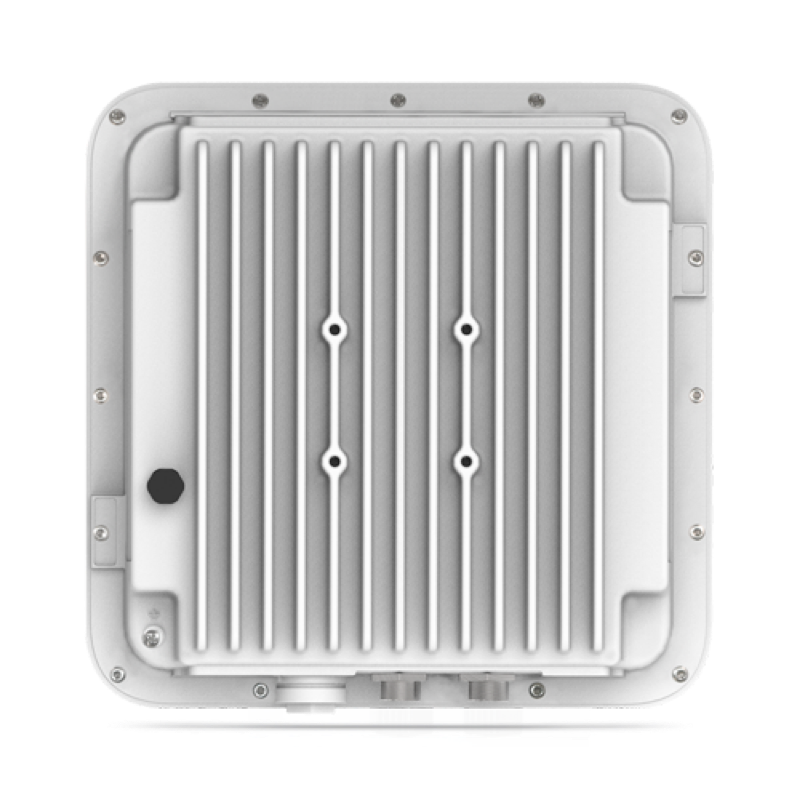

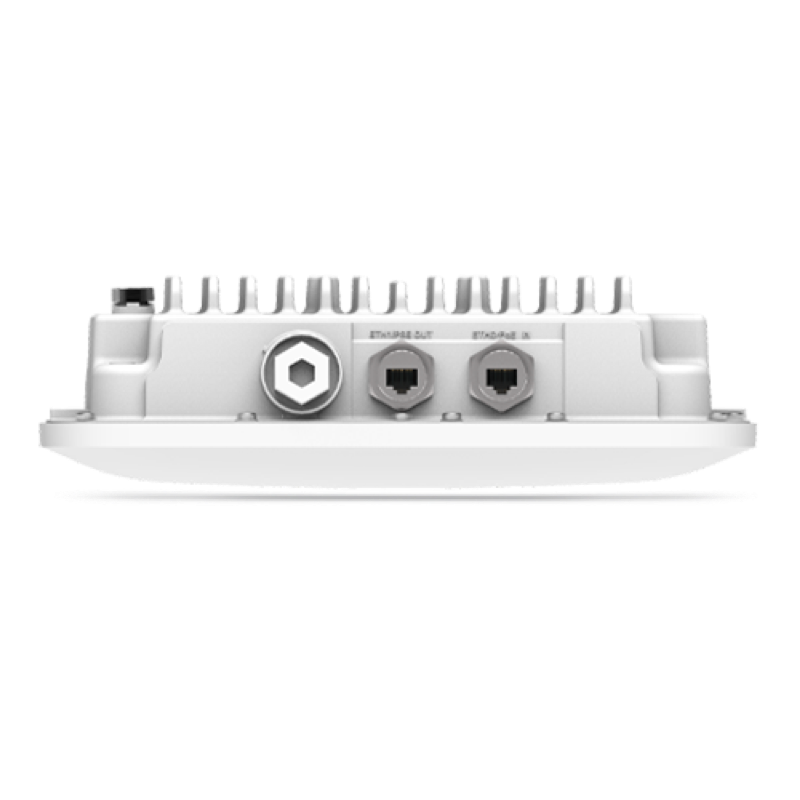

Mist AP63 WiFi 6 802.11ax Outdoor Access Point - Non-US Only

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Highest-Performance Outdoor 802.11ax Wi-Fi and Bluetooth® LE
• The outdoor AP63 Series are tri-radio 4x4 802.11ax access points with maximum data rates of 2,400 Mbps in the 5GHz band and 1,148 Mbps in the 2.4GHz band.
• The third radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor.
• Automatic RF Optimization: Radio resource management (RRM) automates dynamic channel and power assignment, taking Wi-Fi and external sources of interference into account with its dedicated sensor radio.
• Unprecedented Insight and Action: A dedicated dual-band third radio collects data for our patent-pending Proactive Analytics and Correlation Engine (PACE).
• Dynamic Debugging: Constantly monitor services running on the AP63 Series and send alerts whenever a service behaves abnormally.
• Dynamic Packet Capture: The Juniper Mist cloud architecture automatically captures packets and streams them to the cloud when major issues are detected.
• Effortless, Cloud-Based Setup and Updates: The AP63 Series automatically connects to the Juniper Mist cloud architecture, downloads its configuration, and joins the appropriate network.

Medidas y especificaciones (en inglés)

• Technical Specifications:
• Wi-Fi Standard 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac
• Combined Highest Supported Data Rates: Dual-Band: 3.5 Gbps; Dual-5GHz (internal antenna model): 4.8 Gbps
• 2.4 GHz 4x4 : 4 802.11ax up to 1,148 Mbps data rate
• 5 GHz 4x4 : 4 802.11ax up to 2,400 Mbps data rate
• MIMO Operation: Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4x4 HE80
• Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously
• Dedicated Third Radio 2x2:2SS, dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
• Internal Antennas Four 2.4GHz omnidirectional antennas with 4 dBi peak gain; Four 5GHz omnidirectional antennas with 6 dBi peak gain
• Bluetooth 5.0 vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna
• Beam Forming Transmit Beamforming and Maximal Ratio Combining
• Power Options 802.3at PoE (no PoE out), 802.3bt PoE
• Dimensions 285 x 285 x 86 mm (11.2 x 11.2 x 3.4 in)
• Weight AP63: 3.4kg (7.5 lbs) excluding mount and accessories

Fichas técnicas y manuales

• Ficha técnica · Savant Network AI with Juniper Mist AP63 (PDF)

Descripción del fabricante (en inglés)

The outdoor AP63 Series are tri-radio 4×4 802.11ax access points with maximum data rates of 2,400 Mbps in the 5GHz band and 1,148 Mbps in the 2.4GHz band. The 3rd radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor. This wireless access point is IP67 wet rated for outdoor use. By adding 802.11ax Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO) and BSS Coloring technologies into the AP63 Series, performance is boosted to unprecedented levels to support new bandwidth-hungry applications and soaring device densities. The AP63 requires 802.3at PoE (no PoE out) (PoE+ 25.5W), 802.3bt PoE for full power (PoE++ 60W) For use in approved countries outside the US only due to regulatory compliance. Requires active Savant Smart Networking subscription for deployment and ongoing cloud management, monitoring & support.
