NC for Access Point S - New Contstruction

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Sits flush with the wall.
• Adapter is supplied unpainted.
• Paintable with wall paint in any color and texture.
• Easy insertion and removal of the device.
• Designed to be installed in ½” drywall.
• Straight-forward installation process - similar to drywall construction procedures.
• Designed for a variety of access points measuring up to 21 x 21 x 60cm in size BT11, AP21, AP32, AP33, WAX610, WAX620, WAX214PA, WAX218 (AP not included).

Medidas y especificaciones (en inglés)

• Dimensions (WxHxD): 317.5mm (12.5") x 317.5mm (12.5") x 78.5mm (3.09”)
• Power Supply: Manual adapter
• Weight: 4.63lbs (2.1Kg)
• Material: Moisture resistant MDF
• To be installed in ½” drywall.
• For installation in 5/8” drywall 1/8” shim pack 10-01-067 can be used. Sold separately.

Fichas técnicas y manuales

• Documento · Wallsmart Cross Reference Guide (PDF)

Descripción del fabricante (en inglés)

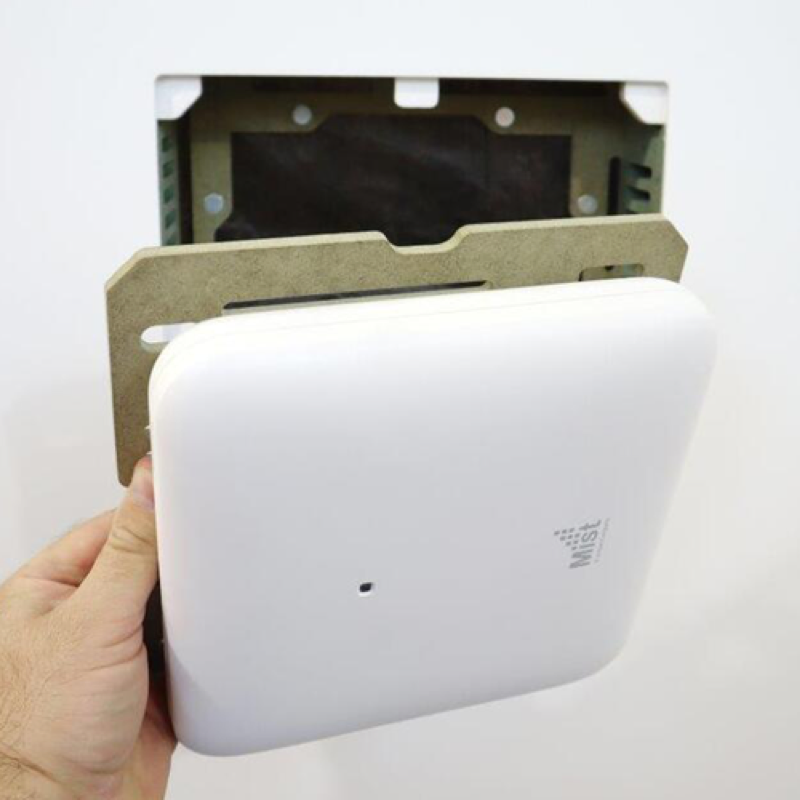

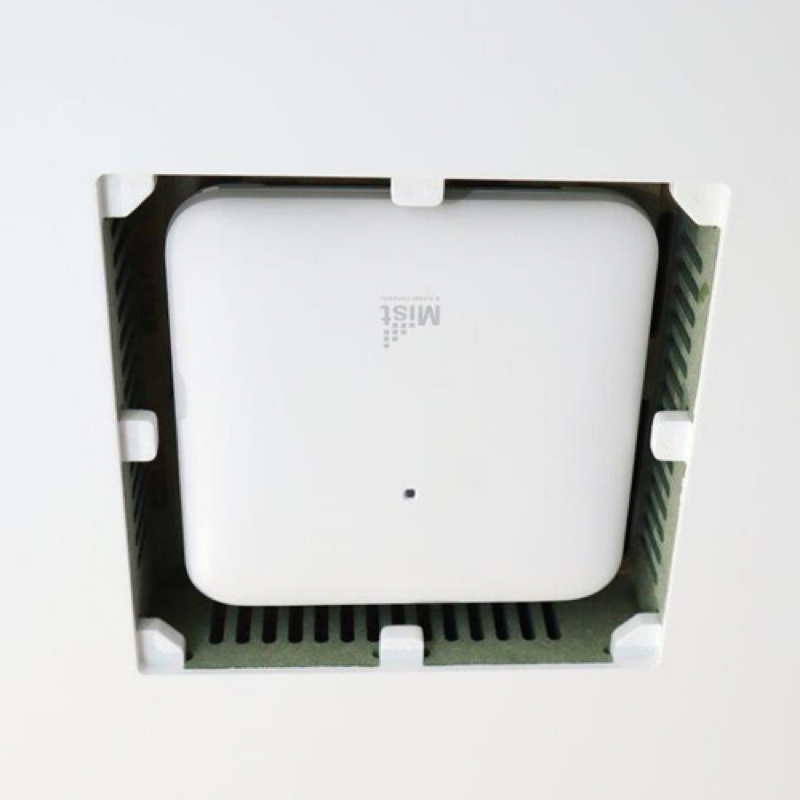

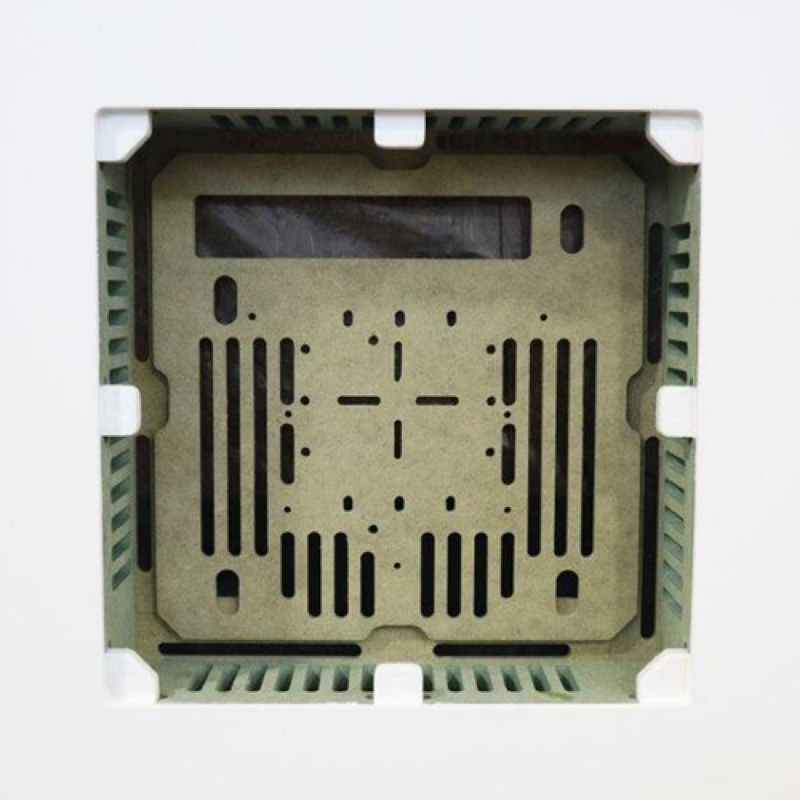

The Wall-Smart for Savant Juniper Access Point S is an adapter for in-wall flush installations for a variety of access points measuring up to 21 x 21 x 60cm in size. It firmly mounts the device allowing easy access, insertion and operation. Suitable for small devices.
