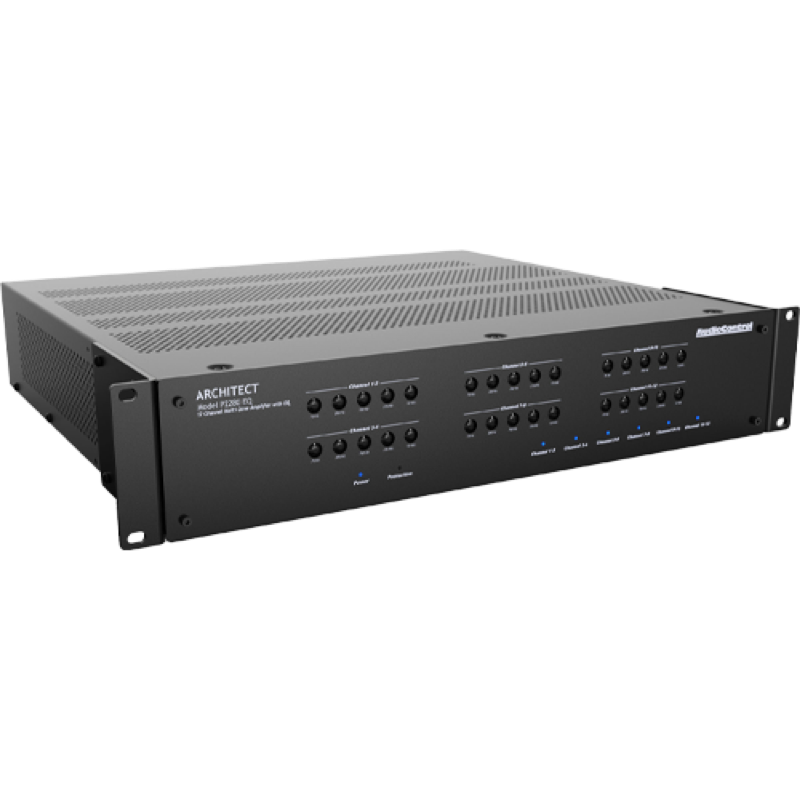

Architect Model P2280 Eq - 12 Channel High Power Amplifier W/Eq

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 12 Channels of High Power and AudioControl Performance
• Five Band 12 Channel Speaker Equalization
• 100 watts per Channel at 8 Ohms (All Channels Driven)
• 200 watts per Channel at 4 Ohms (All Channels Driven)
• Bridgeable as a six-channel amplifier at 400 watts
• Low Standby Current Draw of Less Than 1 Watt
• Compact Design Fits into 2 Rack Spaces
• LightDriveTM Anti-Clipping Protection Circuitry
• (2) Input Buses (Digital and Analog)
• Local Zone Input Trigger
• 12v Trigger Input and Output
• Signal-Sensing On All Channels
• Input Busing and Level Controls
• Mono-switch for Improved Bridging

Medidas y especificaciones (en inglés)

• Inputs
• Inputs: 6 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input
• Input Sensitivity: Variable 0-1 Vrms
• Analog Input Sensitivity: 1 Vrms for full output; level at maximum
• Outputs
• Amplifier Channels: 12
• 1 Stereo Bus Analog Output
• Power Output (8Ω): 100W per channel
• Power Output (4Ω): 200W per channel
• Power Output (Bridged Mono): 400W
• Minimum Speaker Load: 4Ω
• Performance
• Damping Factor: >300
• Signal to Noise: >105 dB, (A-wtd, ref full output)

Descripción del fabricante (en inglés)

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry-leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels are driven. The P2280 EQ uses a cool running proprietary design, including AudioControl’s LightDrive™ anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources. AudioControl’s legendary equalization controls are easily accessible from the front panel and may be covered with the included magnetic security panel once the system is dialed in.
