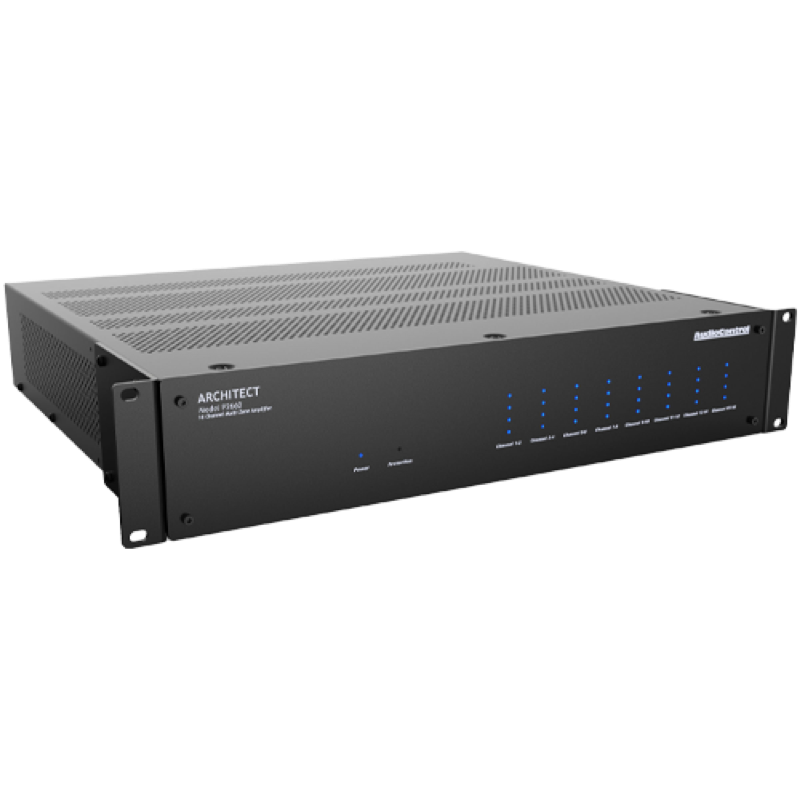

Architect Model P2660 - 16 Channel High Power Amplifier

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• 16 Channels of High Power and AudioControl Performance
• 100 watts per Channel at 8 Ohms (All Channels Driven)
• 200 watts per Channel at 4 Ohms (All Channels Driven)
• Bridgeable as an 8-channel amplifier at 400 watts
• Low Standby Current Draw of Less Than 1 Watt
• Compact Design Fits into 2 Rack Spaces
• LightDrive™ Anti-Clipping Protection Circuitry
• 12v Trigger Input and Output
• (2) Input Buses (Digital and Analog)
• Local Zone Input Trigger
• Signal-Sensing On All Channels
• Input Busing and Level Controls
• Mono-switch for Improved Bridging
• Beefy Rack Mount Brackets Included

Medidas y especificaciones (en inglés)

• Inputs
• Inputs: 8 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input
• Input Sensitivity: Variable 0-1 Vrms
• Analog Input Sensitivity: 1 Vrms for full output; level at maximum
• Outputs
• Amplifier Channels: 16
• 1 Stereo Bus Analog Output
• Power Output (8Ω): 100W per channel
• Power Output (4Ω): 200W per channel
• Power Output (Bridged Mono): 400W
• Minimum Speaker Load: 4Ω
• Performance
• Damping Factor: >300
• Signal to Noise: >105 dB, (A-wtd, ref full output)

Descripción del fabricante (en inglés)

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry-leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels are driven. The P2660 uses a cool running proprietary design, including AudioControl’s LightDrive™ anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.
