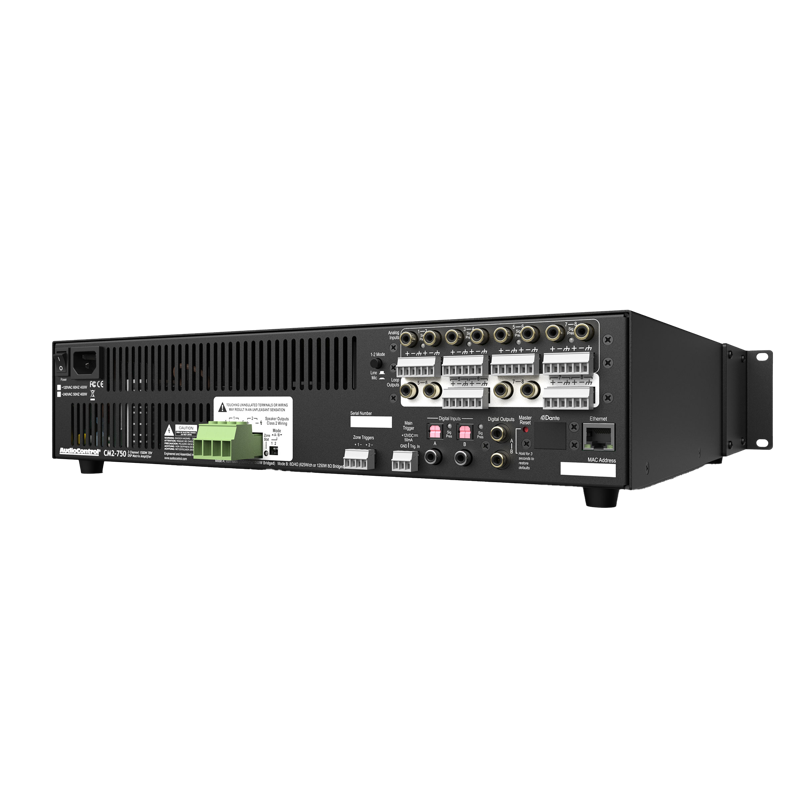

- 2 Channel High Power Dual Mode 70V DSP Amplifier

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
• 1500 Watts of Bridged Power at 70/100 V or 4Ω/8Ω
• Dual Digital Audio Bus Outputs
• Digital Signal Processing (DSP) Performance
• AudioControl LightDrive Anti-Clipping Speaker Protection
• Digital Signal Sense

Medidas y especificaciones (en inglés)

• Inputs
• 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/Toslink Inputs
• Input Sensitivity: 1 Vrms for full output, level at maximum
• Input Gain: 30 dB
• Outputs
• Amplifier Channels: 2
• Power Output (70 V / 100 V): 750W per channel
• Power Output (70 V / 100 V Bridged): 1500W
• Power Output (8Ω / 4Ω): 625W per channel
• Power Output (8Ω Bridged): 1250W
• Minimum Speaker Load: 2Ω
• Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs
• Control
• Remote Power Trigger: +12 VDC or Dry Contact Closure

Descripción del fabricante (en inglés)

AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The CM Series onboard DSP.
