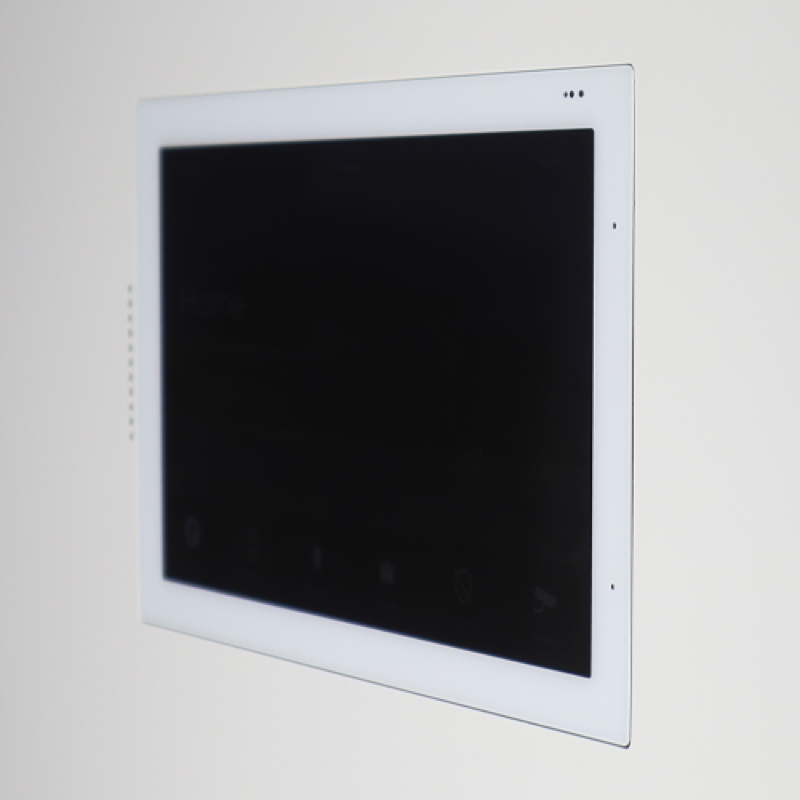

Flush Mount for Savant ITP-E8000V3 8" Touch Screen - New Construction

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Flush with the wall.
• Paintable with the wall paint in any color and texture.
• Includes depth calibration mechanism.
• Allows easy insertion and removal of the touch screen
• The adapter is supplied unpainted (To be painted after installation as part of the wall).
• Designed to be installed in ½” drywall.

Medidas y especificaciones (en inglés)

• Dimensions:
• (W/H/D): 274.3mm (10.80")/ 214.1mm (8.43")/ 44mm (1.73”)
• Power Supply:
• None (manual adapter).
• Weight:
• 0.75Kg, 1.65lbs.
• Material:
• Moisture-resistant MDF
• Installation:
• To be installed in ½” drywall (for installation in 5/8” drywall, use 1/8” shim pack P/N 10-01-067 (sold separately)).

Descripción del fabricante (en inglés)

The WS NC FOR 8" TOUCH SCREEN is an adapter for in-wall flush installation of an 8” touch screen. The WS NC FOR 8" TOUCH SCREEN firmly mounts the touch screen while allowing easy access, insertion, and operation. Installation of the Wall-Smart adapter is straightforward. The installation process is similar to that for drywall construction. Before installation, read Wall-Smart installation instruction 10-04-00101-INS in http://www.wallsmart.com/faq.
