Flush Mount for Savant ITP-E10100V3 10" Touch Screen - New Construct

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

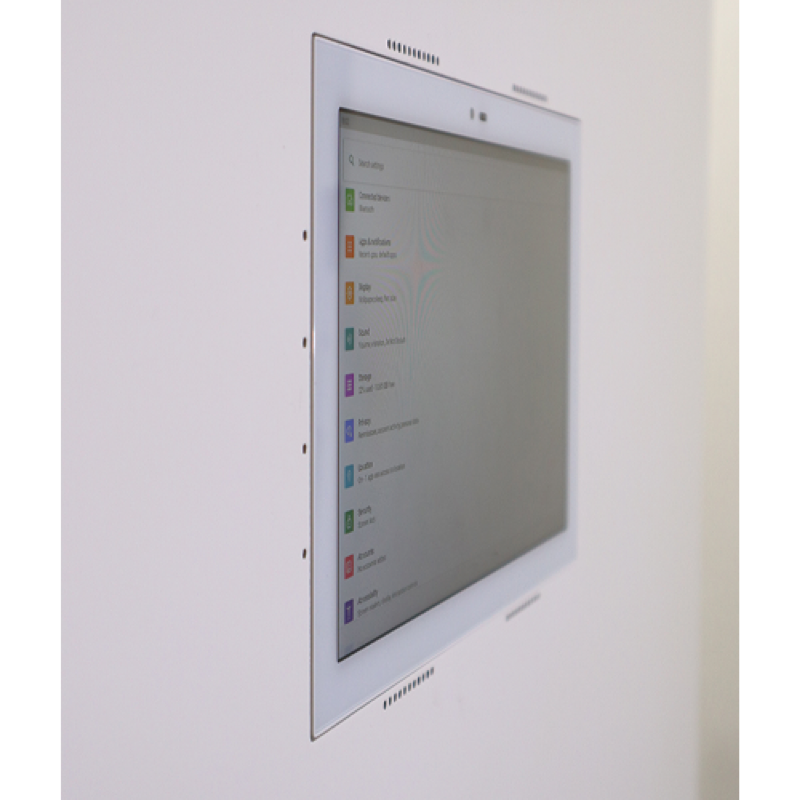

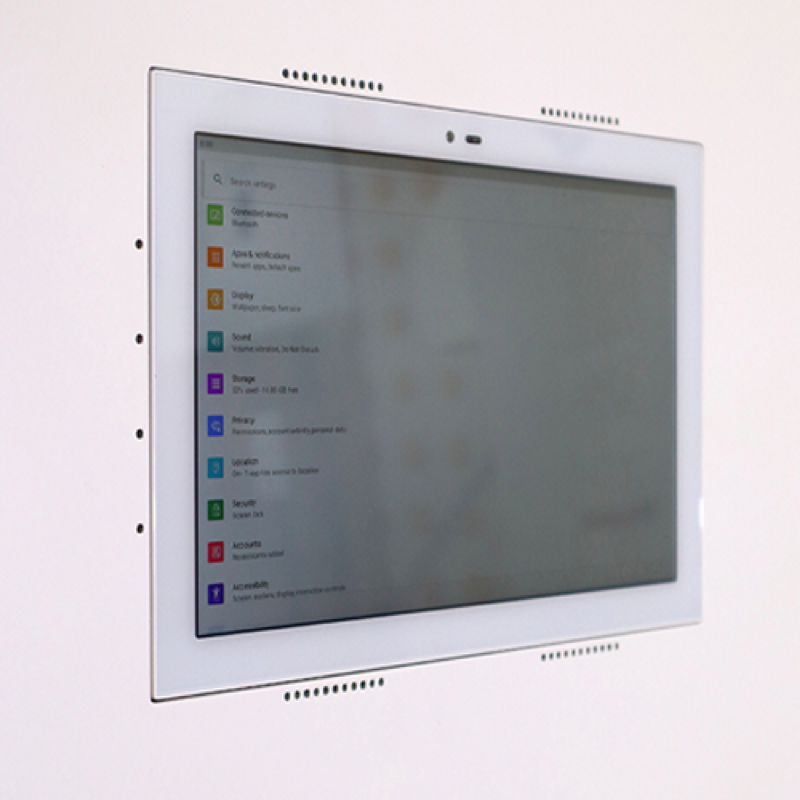

• Flush with the wall.
• Paintable with the wall paint in any color and texture.
• Includes depth calibration mechanism.

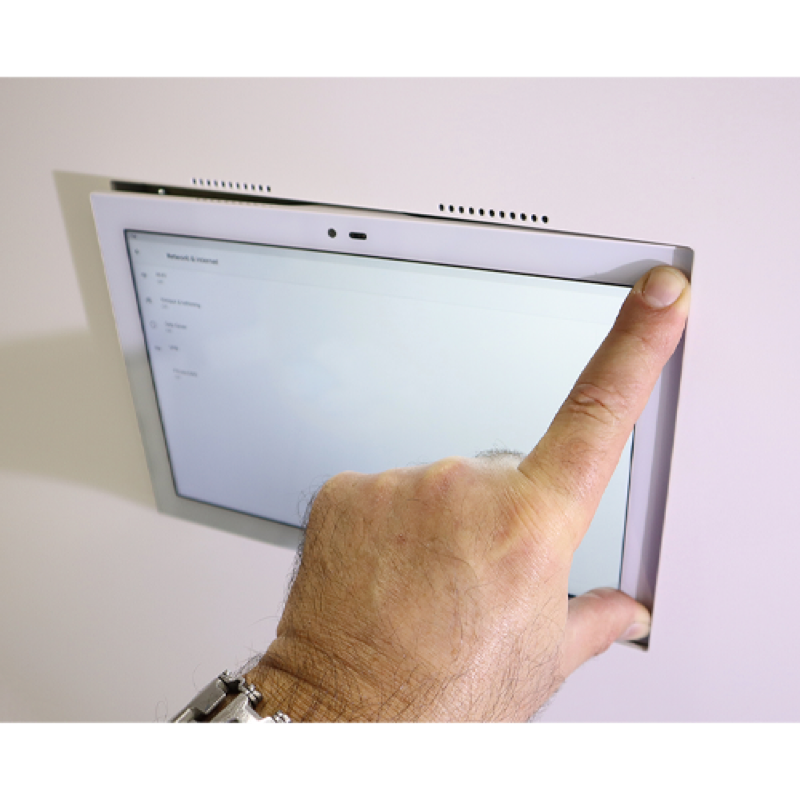

• Allows easy insertion and removal of the touch screen.
• The adapter is supplied unpainted (To be painted after installation as part of the wall).
• Designed to be installed in ½” drywall.

Medidas y especificaciones (en inglés)

• Dimensions:
• (W/H/D): 331.5mm (13.05")/ 249mm (9.8")/ 44mm (1.73”)
• Power Supply:
• None (manual adapter).
• Weight:
• 1.02Kg, 2.24lbs.
• Material:
• Moisture-resistant MDF. To be installed in ½” drywall (for installation in 5/8” drywall, use 1/8” shim pack P/N 10-01-067 (sold separately)).

Descripción del fabricante (en inglés)

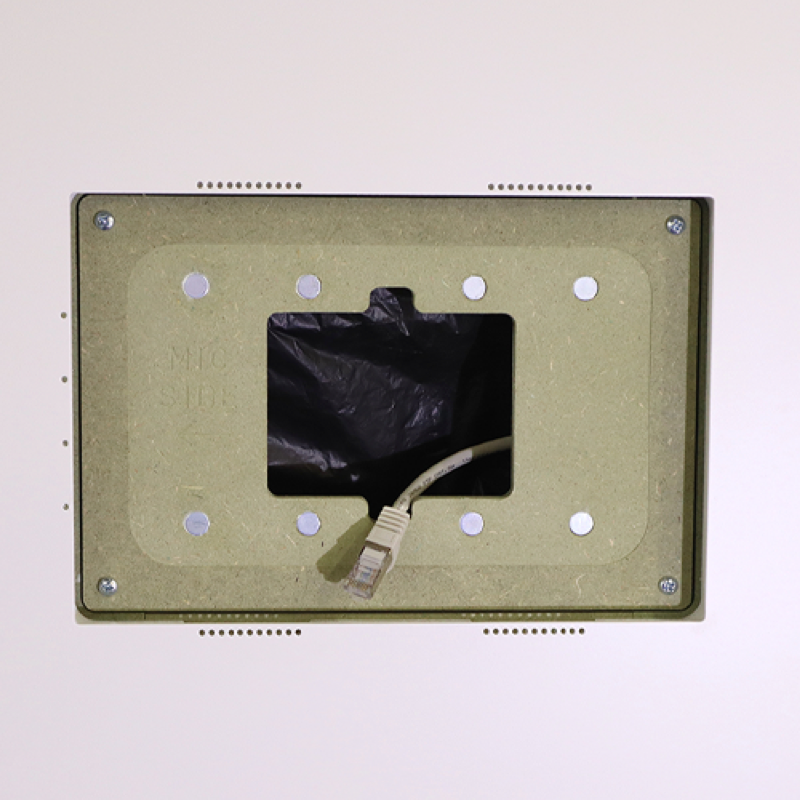

The WS NC FOR 10" TOUCH SCREEN is an adapter for in-wall flush installation of a 10” touch screen. The “WS NC FOR 10" TOUCH SCREEN” firmly mounts the touch screen while allowing easy access, insertion, and operation. Installation of the Wall-Smart adapter is straightforward. The installation process is similar to that for drywall construction. Before installation, read Wall-Smart installation instruction 10-04-00101-INS in http://www.wall-smart.com/faq.
