The Director Model M6800 - 16 Channel High Power Matrixing Amplifi

Se importa de EE. UU. bajo pedido. El precio ya incluye la importación y el IVA; la entrega en México se cotiza con tu pedido.

Características (del fabricante, en inglés)

• Network DHCP Signal Matrix Amplifier With Volume Control
• 16 Channels x 100 Watts at 8 Ohms (All Channels Driven)
• 16 Channels x 200 Watts at 4 Ohms (All Channels Driven)
• Bridgeable to 400 Watts of Bridged Power
• Digital Signal Processing (DSP) Performance
• Built-In Speaker Optimization Profiles
• Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
• Built-in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
• Network Programmable Graphic & Parametric Equalization with User Memories
• Assignable Names for All Zones & Amplifier
• Digital Signal Sense
• Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
• AudioControl LightDrive Anti-Clipping Speaker Protection
• Local Inputs with Pass Thru / Loop Outputs

Medidas y especificaciones (en inglés)

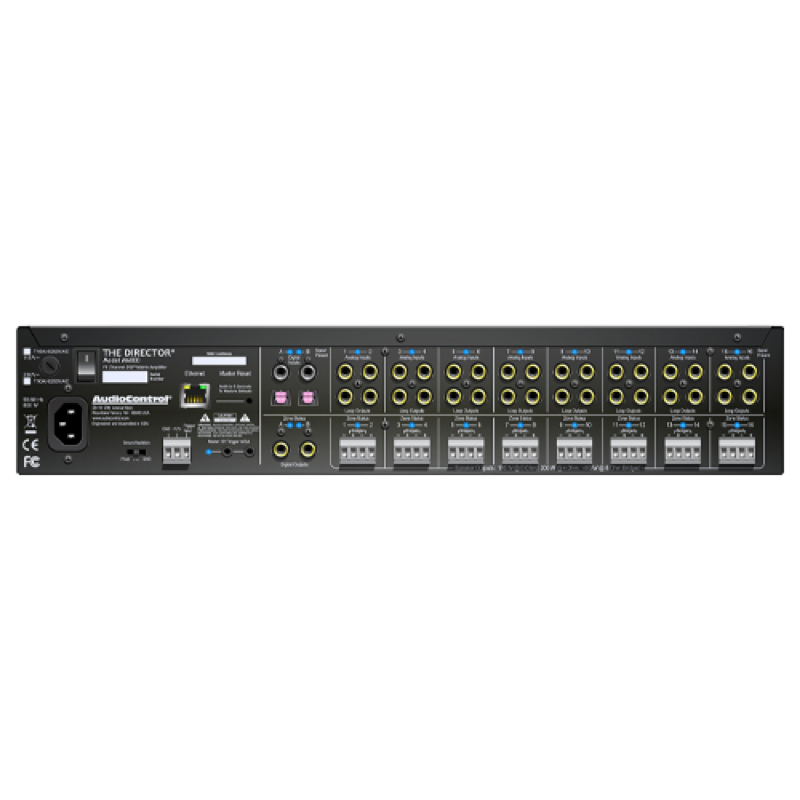

• Inputs
• Inputs: 8 Stereo Local Inputs, 2 Digital S/PDIF and Toslink Inputs
• Input Sensitivity: 1 Vrms for full output, level at maximum
• Input Gain: 30 dB
• Outputs
• Amplifier Channels: 16
• Power Output (8Ω): 100W per channel
• Power Output (4Ω): 200W per channel
• Power Output (8Ω Bridged Mono): 400W
• Minimum Speaker Load: 4Ω
• Preamp Audio Outputs: 8 Stereo Loop Outputs, 2 Digital S/PDIF Outputs
• Performance
• Crosstalk: > 80 dB @ 1 kHz
• Damping Factor: >300

Descripción del fabricante (en inglés)

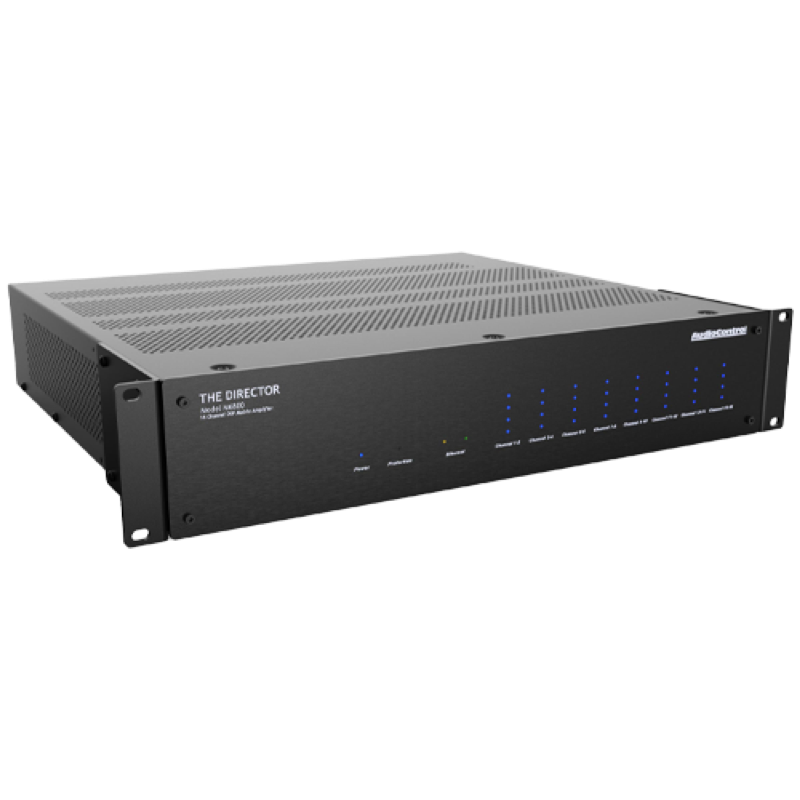

The Director® Model M6800 Matrix Amplifier from AudioControl is the first of its kind and one of the highest power, most flexible multi-zone amplifiers designed exclusively for the custom-install market. The Director Model M6800 builds upon the success of AudioControl’s The Director Series, driving 16-channels of high-power amplification in a compact 2U chassis, delivering over 100 watts per channel at 8 ohms, 200 watts per channel at 4 ohms and 400 watts at 8 ohms bridged, all channels driven.
